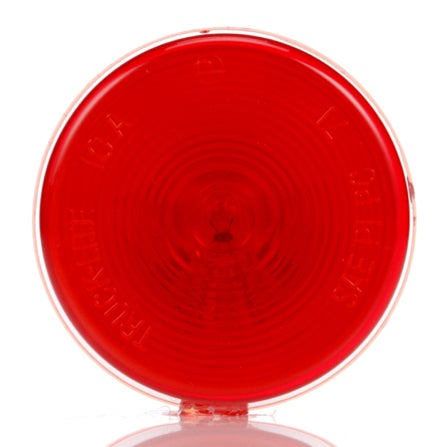

10 Series, Incandescent, Red Round, 1 Bulb, Marker Clearance Light, PC, Bracket Mount, PL-10, Ring Terminal/Stripped End, 12V, Kit
10004R
Rust resistant stainless steel mount|Quick cam-on, cam-off lamp installation|Suitable for PC requirements on a 45-degree angle using all 2-1/2" diameter lamps|Mounts with screws to surface|Model 10 kits available|Not recommended for use with Signal-Stat LED products|Replaces Signal-Stat 9394
- PL-10
- Kit
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 10 Series, Incandescent, Red Round, 1 Bulb, Marker Clearance Light, PC, Bracket Mount, PL-10, Ring Terminal/Stripped End, 12V, Kit |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 10 Series |
| Warranty | 1-Year |
| Common Root | 10004R |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Rust resistant stainless steel mount|Quick cam-on, cam-off lamp installation|Suitable for PC requirements on a 45-degree angle using all 2-1/2" diameter lamps|Mounts with screws to surface|Model 10 kits available|Not recommended for use with Signal-Stat LED products|Replaces Signal-Stat 9394 |
| Feature Highlights | PL-10|Kit|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2039478 |
| KIT (Yes/No) | Yes |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-10 |
| Lens Color | Red |
| Lens Height_INH | 2.5 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.5 |
| Mount/Trim Color | Silver |
| Mount/Trim Material | Stainless Steel |
| Mount Type | Bracket Mount Kit |
| NAPA Part Number | 10004R |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 10004R4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two | Ring Terminal|Stripped End |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | A|P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 17.78 |
| Total Depth | .7 |
| Temp. Description | Mdl 10 Surface Mount Kit |
| Total Height_MMT | 63.5 |
| Total Height | 2.5 |
| Total Length | .33 |
| Total Width_MMT | 63.5 |
| Total Width | 2.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111009658 |
| VMRS | 034-004-021 |
| Voltage (VLT) | 12 |
| Weight | .13 |
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
