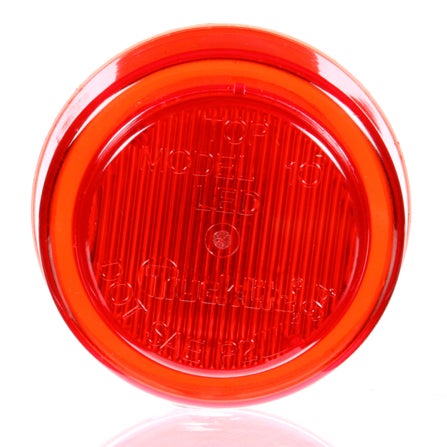

10 Series, LED, Red Round, 2 Diode, Marker Clearance Light, P2, Black Polycarbonate Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit

10050R

|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Electronics completely sealed in epoxy to resist corrosion and moisture
  • PL-10
  • Fit 'N Forget M/C
  • Kit
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 10 Series, LED, Red Round, 2 Diode, Marker Clearance Light, P2, Black Polycarbonate Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit
Brand TL
Category Marker Clearance Light
Series 10 Series
Warranty Lifetime
Common Root 10050R
Country of Origin ZZ
Diamond Shell (Yes/No) No
Features & Benefits |Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Electronics completely sealed in epoxy to resist corrosion and moisture
Feature Highlights PL-10|Fit 'N Forget M/C|Kit|12 V
Housing Material Polycarbonate
Itm Id 2039881
KIT (Yes/No) Yes
Lens Shape Round
Lighting Technology LED
Lamp Connection Fit 'N Forget M/C
Lens Color Red
Lens Height_INH 2.54
Lens Material Polycarbonate
Lens Width_INH 2.54
Mount/Trim Color Black
Mount/Trim Material Polycarbonate
Mount Type Grommet Kit
NAPA Part Number 10050R
Number of Diodes/Bulbs 2
Number of Wires 2
Packaging Type Standard
Part Number 10050R4
Plug Side One (Simplified) Fit 'N Forget M/C
Plug Side One Fit 'N Forget M/C
Plug Side Two Female PL-10
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|PC
Std Carton Qty 1
Taxonomy Lights.Marker & Clearance Lights
Total Depth_MMT 35.56
Total Depth 1.4
Temp. Description LED Mdl 10 M/C Grommet Kit
Total Height_MMT 88.9
Total Height 3.5
Total Length .03
Total Width_MMT 88.9
Total Width 3.5
UNSPSC/Tariff 25172900
UPC 0735111039044
VMRS 034-004-253
Voltage (VLT) 12
Weight .27
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
