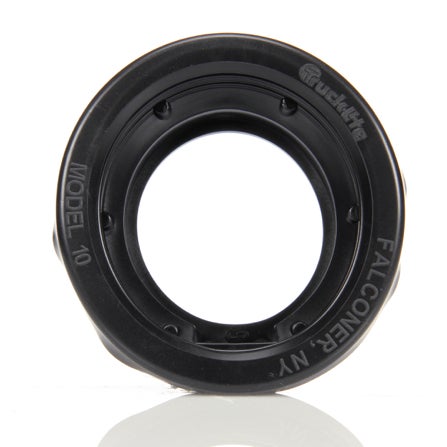

Open Back, Black PVC, Grommet for 10 Series and 2.5 in. Lights, Round, PL-10 Stripped End/Ring Terminal, Kit
10401
Flush mounts 2-1/2" diameter lamps|Wide groove for panel thickness up to 250"|Narrow groove for panel thickness up to 125"|Suitable for PC requirements on a 45-degree angle when using LED or incandescent PC-rated/combination lamps|Closed-back versions recommended for open installation where splash plate is not used|Replaces Signal-Stat 9119 and 9156
- PL-10
- Kit
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Open Back, Black PVC, Grommet for 10 Series and 2.5 in. Lights, Round, PL-10 Stripped End/Ring Terminal, Kit |
|---|---|
| Brand | TL |
| Category | Grommet |
| Series | 10 Series |
| Warranty | 1-Year |
| Common Root | 10401 |
| Country of Origin | MX |
| Compatible Light Shape | Round |
| Compatible Products | 10 Series Lamps |
| Features & Benefits | Flush mounts 2-1/2" diameter lamps|Wide groove for panel thickness up to 250"|Narrow groove for panel thickness up to 125"|Suitable for PC requirements on a 45-degree angle when using LED or incandescent PC-rated/combination lamps|Closed-back versions recommended for open installation where splash plate is not used|Replaces Signal-Stat 9119 and 9156 |
| Feature Highlights | PL-10|Kit |
| Itm Id | 2045093 |
| KIT (Yes/No) | Yes |
| Lamp Connection | PL-10 |
| Mounting Connector Diameter_INH | 2.5 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| NAPA Part Number | 10401 |
| Number of Wires | 2 |
| Open/Close | Open |
| Packaging Type | Standard |
| Part Number | 10401-4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two (Simplified) | Stripped End |
| Plug Side Two | Stripped End|Ring Terminal |
| Std Carton Qty | 1 |
| Taxonomy | Light Mounting.Grommet Mounts |
| Total Depth_MMT | 28.45 |
| Total Depth | 1.12 |
| Temp. Description | Mdl 10 Open Back Grommet Mount |
| Total Height_MMT | 84.07 |
| Total Height | 3.31 |
| Total Width_MMT | 84.07 |
| Total Width | 3.31 |
| UNSPSC/Tariff | 31162401 |
| UPC | 0735111039143 |
| VMRS | 034-004-058 |
| Weight | .16 |
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
