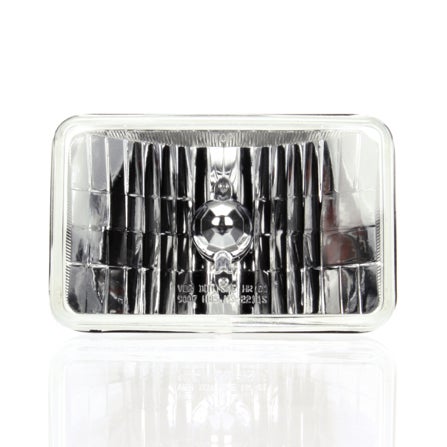

4"x6" Rectangular Halogen 1 Bulb Headlight, Glass Lens, Die-Cast Aluminum, 12V, Kit

27011

Exceeds DOT minimum requirements by an average of 300% low beam and 225% high beam|Review for appropriate bucket fit for installing|Retrofits ANSI #H4656|Adapter #95846 may be needed to retrofit, included with kit|Not recommended for certain buckets on Freightliner, Kenworth or Western Star Trucks
  • Packard Connector
  • H5 Connector
  • Kit
  • Halogen
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 4"x6" Rectangular Halogen 1 Bulb Headlight, Glass Lens, Die-Cast Aluminum, 12V, Kit
New No
Best Sellers No
Show Size Chart No
Brand TL
Category Headlight
Warranty 1-Year
Aiming Type Manual
Beam Pattern High|Low
Country of Origin TW
Current Major 5.08
Current Minor 4.3
Features & Benefits Exceeds DOT minimum requirements by an average of 300% low beam and 225% high beam|Review for appropriate bucket fit for installing|Retrofits ANSI #H4656|Adapter #95846 may be needed to retrofit, included with kit|Not recommended for certain buckets on Freightliner, Kenworth or Western Star Trucks
Feature Highlights Packard Connector|H5 Connector|Kit|Halogen|12 V
Heated Lens (Yes/No) No
Housing Material Die-Cast Aluminum
Itm Id 2852274
KIT (Yes/No) Yes
Lens Shape Rectangular
Lighting Technology Halogen
Lamp Connection H5 Connector
Lamp Connection (Simplified) H5 Connector
Lens Color Clear
Lens Height_INH 4
Lens Material Glass
Lens Width_INH 6
NAPA Part Number 27011
Number of Diodes/Bulbs 1
Number of Wires 3
Packaging Type Standard
Part Number 27011-4
Plug Side One (Simplified) H5 Connector
Plug Side One H5 Connector
Plug Side Two Packard Connector 8905807
Sealed/Bulb Replaceable Bulb Replaceable
Std Carton Qty 1
Taxonomy Lights.Headlights
Total Depth_MMT 124.49
Total Depth 4.9
Temp. Description 4"X6"HeadLamp Kit W/ Adapter
Total Height_MMT 106.48
Total Height 4.19
Total Width_MMT 162.28
Total Width 6.39
UNSPSC/Tariff 25172900
UPC 0735111139331
VMRS 034-001-000
Voltage (VLT) 12
Weight 3
