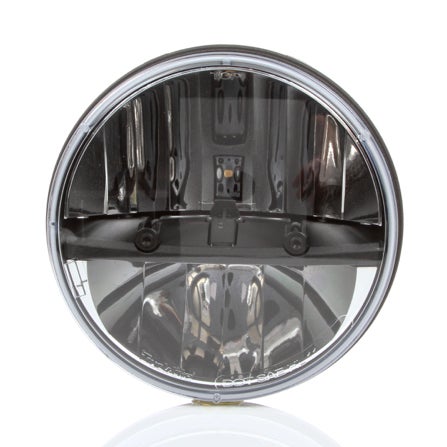

Complex Reflector, 7" Round LED, 2 Diodes Headlight, Polycarbonate Lens, E-Coat Aluminum, 12-24V

27270C

When properly mounted, the lamp is designed to conform to the requirements listed in the Department of Transportation (DOT), FMVSS-108 and Transport Canada (TC), CMVSS-108|Headlights marked with the DOT symbol signifies the lamps are street legal|Excellent option for light, medium and heavy-duty trucks, off-road vehicles, classic cars, motorcycles and more|Metalized reflector optics provide a lighting experience that smooth and clean across the driving surface|Provides a brighter, crisper and whiter light output, closer to the color temperature of daylight|Durability and dependability of LED lighting provides a solid-state, bulb-free headlight design that impervious to damage from shock and vibration|Military grade, die-cast aluminum housing and non-yellowing, polycarbonate lens offer optimum protection against damage from impact, roadside debris and other hazards|Electronics are sealed in epoxy to resist from damage caused by corrosion or moisture|Advanced circuitry protects against voltage spikes up to 600V|Drop-in replacement for #6014, 6015, 6016, H6024 and Par 56 headlight designs|Uses standard, H4, 3-blade wiring connector|Equipped with Truck-Lite 3-Year Limited Warranty
  • Hardwired
  • H4 Connector
Aiming Type Manual
Beam Pattern High|Low
Business Unit Truck-Lite (NA)
Brand TL
Category Headlight
Common Root 27270C
Common Size 7"
Country of Origin ZZ
Current Major 2.95
Current Minor 1.45
Features & Benefits When properly mounted, the lamp is designed to conform to the requirements listed in the Department of Transportation (DOT), FMVSS-108 and Transport Canada (TC), CMVSS-108|Headlights marked with the DOT symbol signifies the lamps are street legal|Excellent option for light, medium and heavy-duty trucks, off-road vehicles, classic cars, motorcycles and more|Metalized reflector optics provide a lighting experience that smooth and clean across the driving surface|Provides a brighter, crisper and whiter light output, closer to the color temperature of daylight|Durability and dependability of LED lighting provides a solid-state, bulb-free headlight design that impervious to damage from shock and vibration|Military grade, die-cast aluminum housing and non-yellowing, polycarbonate lens offer optimum protection against damage from impact, roadside debris and other hazards|Electronics are sealed in epoxy to resist from damage caused by corrosion or moisture|Advanced circuitry protects against voltage spikes up to 600V|Drop-in replacement for #6014, 6015, 6016, H6024 and Par 56 headlight designs|Uses standard, H4, 3-blade wiring connector|Equipped with Truck-Lite 3-Year Limited Warranty
Heated Lens (Yes/No) No
Housing Material E-Coat Aluminum
Itm Id 3604678
KIT (Yes/No) No
Lamp Connection Hardwired
Lamp Connection (Simplified) Hardwired
Lens Color Clear
Lens Height (INH) 7
Lens Material Polycarbonate
Lens Shape Round
Lens Width (INH) 7
Lighting Technology LED
NAPA Part Number 27270C
Number of Diodes/Bulbs 2
Number of Wires 3
Packaging Type Standard
Part Number 27270C4
Plug Side One Hardwired
Plug Side Two H4 Connector
Sealed/Bulb Replaceable Sealed
Std Carton Qty 1
Taxonomy Lights.Headlights
Total Depth 3.82
Total Depth (MMT) 97
Total Height 7
Total Height (MMT) 177.8
Total Width 7
Total Width (MMT) 177.8
UNSPSC/Tariff 25172900
UPC 735111182023
VMRS 034-001-000
Voltage (VLT) 12|24
Warranty 3-Year
Weight 3.01
Feature Highlights Hardwired|H4 Connector
Image Highlighters TL.jpg|LED.jpg|3Year.jpg
Label 1 No
Label 2 No
Label 3 No
Show Size Chart No
