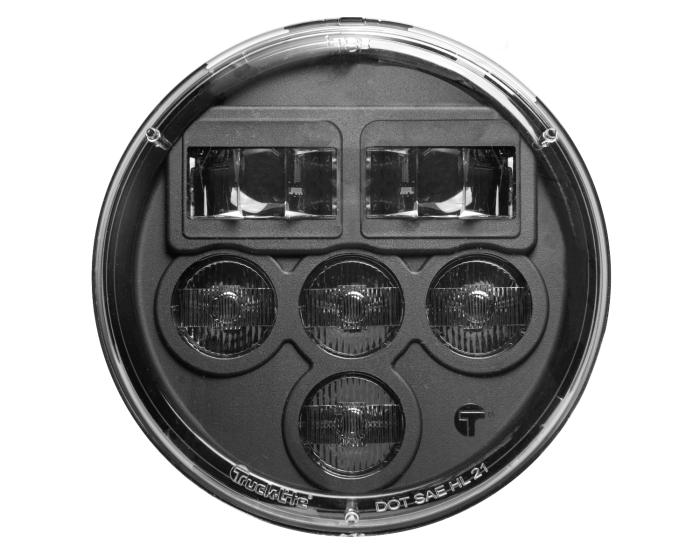

37 Series, LED, 7", Round, 6 Diode , Clear, Polycarbonate Lens, Hardwired, 12V|24V, High Beam and Low Beam, Direct LED Headlight, Bulk
37270C3
The TL 37 Series LED Headlamp, featuring a robust die-cast aluminum housing and clear polycarbonate lens, offers both high and low beam patterns with 6 diodes, providing powerful and versatile illumination. With a wide voltage range of 12V to 24V, it ensures compatibility with various electrical systems, making it a reliable and adaptable choice for enhanced visibility in low-light conditions.
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 37 Series, LED, 7", Round, 6 Diode , Clear, Polycarbonate Lens, Hardwired, 12V|24V, High Beam and Low Beam, Direct LED Headlight, Bulk |
|---|---|
| SKU | 37270C3 |
| Color | None |
| Series | 37 Series |
| Brand | TL |
| Category | Headlamp |
| Aiming Type | Mechanical Aim |
| Beam Pattern | High|Low |
| Beam Type | LOW / HIGH |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 7" |
| Country of Origin | US |
| Current Major | 2.00A-3.70A @ 12.8V 1.05A-1.90A @ 25.8V |
| Current Minor | 1.38A-1.98A @ 12.8V 0.70A-1.00A @ 25.8V |
| Features & Benefits | The TL 37 Series LED Headlamp, featuring a robust die-cast aluminum housing and clear polycarbonate lens, offers both high and low beam patterns with 6 diodes, providing powerful and versatile illumination. With a wide voltage range of 12V to 24V, it ensu |
| Heated Lens (Yes/No) | No |
| Housing Material | Die-Cast Aluminum |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lamp Connection (Simplified) | Hardwired |
| Lens Color | Clear |
| Lens Height_INH | 1.2" |
| Lens Material | Polycarbonate |
| Lens Width_INH | 7" DIAMETER |
| Number of Diodes/Bulbs | 6 |
| Number of Wires | 3 |
| Packaging Type | Bulk |
| Part Number | 37270C3 |
| Plug Side One | Hardwired |
| Plug Side Two | H4 - 3 blade connector |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 6 |
| Total Depth | 3.6" |
| Total Height | 7"DIAMETER |
| Total Width | 7" DIAMETER |
| Voltage (VLT) | 12|24 |
| Weight | 1.8 lb |
| Wire Gauge | 16 |
