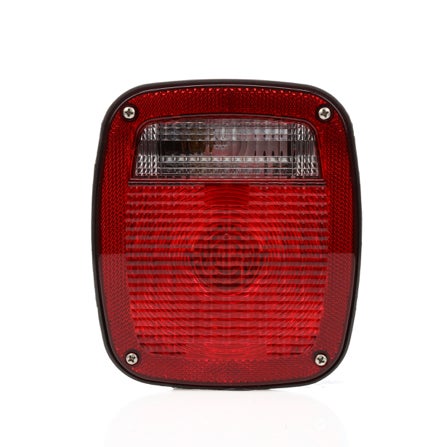

Signal-Stat, Incandescent, Red/Clear Acrylic Lens, Universal, Combo Box Light, 3 Stud , Hardwired, Stripped End, 12V

4027

Combination stop/turn/tail, back-up and reflex reflector|Three bolt on 2" triangle|Upgrade to LED Truck-Lite LED Products using #5070-#5073
  • Stripped End
  • Hardwired
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name Signal-Stat, Incandescent, Red/Clear Acrylic Lens, Universal, Combo Box Light, 3 Stud , Hardwired, Stripped End, 12V
Brand Signal-Stat
Category Combination Box Lights
Series Signal-Stat
Warranty 1-Year
Common Root 4027
Country of Origin ZZ
Current Major 2.1
Current Minor 0.59
Features & Benefits Combination stop/turn/tail, back-up and reflex reflector|Three bolt on 2" triangle|Upgrade to LED Truck-Lite LED Products using #5070-#5073
Feature Highlights Stripped End|Hardwired|12 V
Housing Color Black
Housing Material Polycarbonate
Itm Id 1973998
KIT (Yes/No) No
Lens Shape Rectangular
License Lamp (Yes/No) No
Lighting Technology Incandescent
Lamp Connection Hardwired
Lens Color Red|Clear
Lens Height_INH 6.75
Lens Material Acrylic
Mount Type 3 Stud Mount
NAPA Part Number 4027
Number of Diodes/Bulbs 2
Number of Wires 3
Packaging Type Standard
Part Number SS4027-S
Plug Side One Hardwired
Plug Side Two Stripped End
Position Universal
Sealed/Bulb Replaceable Bulb Replaceable
Standards Met S2|I6|R|A|L|T
Std Carton Qty 1
Taxonomy Lights.Combination Box Lights
Total Depth_MMT 69.85
Total Depth 2.75
Temp. Description Multi-Function Universal Three
Total Height_MMT 171.45
Total Height 6.75
Total Width_MMT 146.05
Total Width 5.75
UNSPSC/Tariff 25172900
UPC 735111145240
VMRS 034-002-013
Voltage (VLT) 12
Weight 1.16
