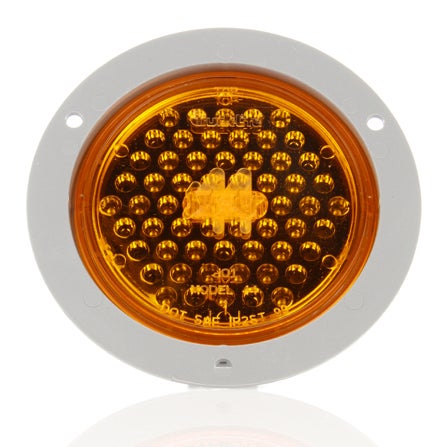

Product Name | Super 44, LED, Strobe, 42 Diode, Round Yellow, Gray Flange Mount, Metalized, Fit 'N Forget S.S., Stripped End/Ring Terminal, 12V, Kit |
---|---|
Brand | TL |
Category | Strobe Lamp |
Series | Super 44 |
Warranty | Lifetime |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Size | 4" |
Country of Origin | ZZ |
Current_AMP | 0.5 |
Features & Benefits | External power pack not required|Metalized reflector version offers more intense focused light|Non-metalized version offers wider viewing angle|Dual or quad flashing patterns|Meets recommended SAE J1318 and J845 photometric specifications|Synchronized alternating feature|Lamp life rated at 100,000 hours|Resistance to shock and vibration|Fit ‘N Forget adapter plug provides corrosion and moisture resistance|Integral flange option features built-in lens |
Flashing Patterns | Dual|Quad |
Housing Material | Polycarbonate |
Itm Id | 2136307 |
KIT (Yes/No) | Yes |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | Fit 'N Forget S.S. |
Lens Color | Yellow |
Lens Height_INH | 4.32 |
Lens Material | Polycarbonate |
Lens Width_INH | 4.32 |
Metalized/Non-Metalized | Metalized |
Mount/Trim Color | Gray |
Mount/Trim Material | Polycarbonate |
Mount Type | Flange Mount |
NAPA Part Number | 44104Y |
Number of Diodes/Bulbs | 42 |
Number of Wires | 3 |
Packaging Type | Standard |
Part Number | 44104Y4 |
Plug Side One (Simplified) | Fit 'N Forget S.S. |
Plug Side One | Fit 'N Forget S.S. |
Plug Side Two | Stripped End|Ring Terminal |
Power Type | Self-Contained |
Sealed/Bulb Replaceable | Sealed |
Standards Met | J1318|J845 |
Std Carton Qty | 1 |
Taxonomy | Lights.Strobes |
Total Depth_MMT | 41.66 |
Total Depth | 1.64 |
Temp. Description | LED Mdl 44 Strobe Flange Mount |
Total Height_MMT | 139.7 |
Total Height | 5.5 |
Total Width_MMT | 139.7 |
Total Width | 5.5 |
UNSPSC/Tariff | 39111706 |
UPC | 7.35111E+11 |
VMRS | 034-001-063 |
Voltage (VLT) | 12 |
Weight | 0.5 |
