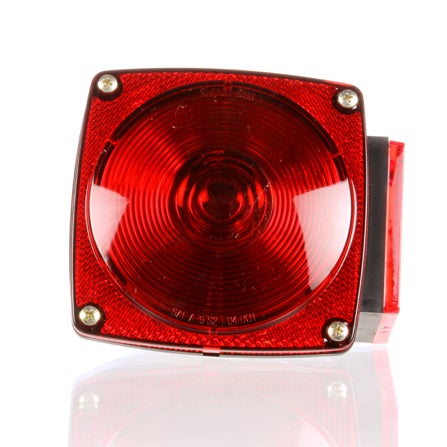

Signal-Stat, Right Hand, Incandescent, Personal Trailer Kit, Hardwired, Stripped End, Display

535D

Signal-Stat, Right Hand, Incandescent, Personal Trailer Kit, Hardwired, Stripped End, Display
  • Stripped End
  • Hardwired
  • Display
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name Signal-Stat, Right Hand, Incandescent, Personal Trailer Kit, Hardwired, Stripped End, Display
New No
Sale No
Best Sellers No
Show Size Chart No
Brand Signal-Stat
Category Personal Trailer Kit
Series Signal-Stat
Warranty 1-Year
Country of Origin TW
Current Major 2.1
Current Minor 0.59
Features & Benefits For use on camping, motorcycle, horse and utility trailers|Kit provides all legal lamps and reflective products for trailers less than 80" wide|Special electrical connections eliminate external wiring splices|Front side marker lamps include built-in reflectors|Rugged plastic design prevents corrosion|S/T/T lamps mount on two studs at 2'' centers|Upgrade to Truck-Lite LED systems using part# 5050DK or 5051DK
Feature Highlights Stripped End|Hardwired|Display|12 V
Housing Material Polycarbonate
Itm Id 1989480
KIT (Yes/No) No
Lens Shape Square
Lighting Technology Incandescent
Lamp Connection Hardwired
Lens Height_INH 4.57
Lens Material Acrylic
Lens Width_INH 4.57
Mount/Trim Color Black
Mount/Trim Material Polycarbonate
Mount Type Bracket Mount
NAPA Part Number 535D
Number of Lamps 1
Number of Wires 2
Packaging Type Display
Part Number SS535-D-S
Plug Side One Hardwired
Plug Side Two (Simplified) Stripped End
Plug Side Two Stripped End
Sealed/Bulb Replaceable Bulb Replaceable
Std Carton Qty 1
Switch Included 0
Taxonomy Complete Trailer Kits.Personal Trailer Kits
Total Depth_MMT 72.3
Temp. Description TRAILER LAMP KIT RH W/O LICENS
Total Height_MMT 116
Total Height 4.57
Total Width_MMT 130.1
Total Width 5.12
UNSPSC/Tariff 25172900
UPC 7.24956E+11
VMRS 034-002-022
Voltage (VLT) 12
Weight 0.64
Wire Gauge 18
Currently no product available
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
