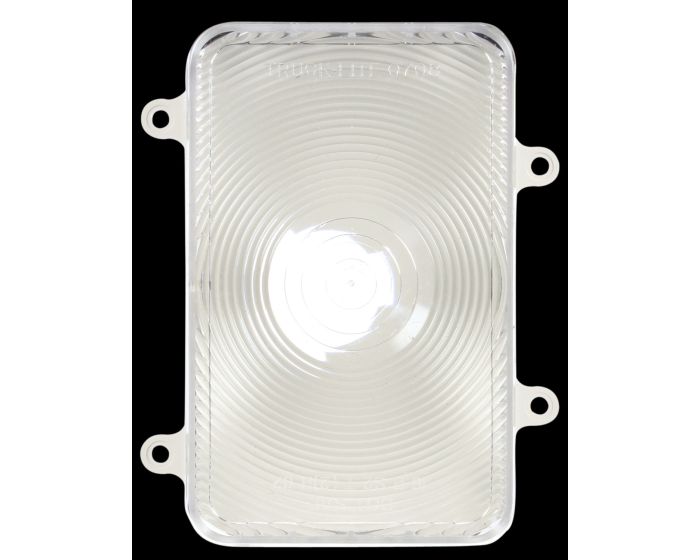

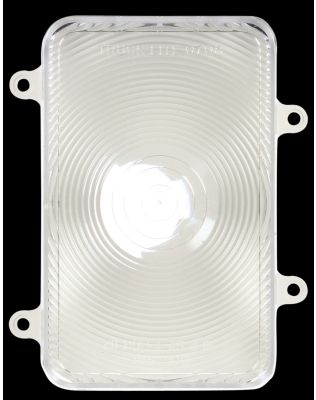

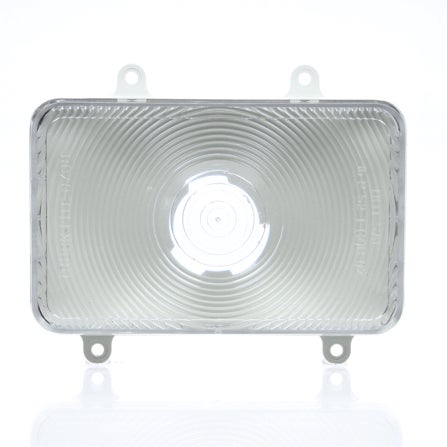

Incandescent, Clear Rectangular, 1 Bulb, Back-Up Light, 4 Screw Bracket Mount, Socket Assembly
07096C
Polycarbonate lens and housing are sealed|Bulb socket cams-in for ease of repair/replacement (sold separately)|Recess mounts using two screws at 30" centers and two screws at 42" centers
- No Plug
- Socket Assembly
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Incandescent, Clear Rectangular, 1 Bulb, Back-Up Light, 4 Screw Bracket Mount, Socket Assembly |
|---|---|
| Brand | TL |
| Category | Back-Up Light |
| Warranty | 1-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 07096C |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Polycarbonate lens and housing are sealed|Bulb socket cams-in for ease of repair/replacement (sold separately)|Recess mounts using two screws at 30" centers and two screws at 42" centers |
| Feature Highlights | No Plug|Socket Assembly |
| Housing Material | Polycarbonate |
| Itm Id | 2034491 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | Incandescent |
| Lamp Connection | Socket Assembly |
| Lens Color | Clear |
| Lens Height_INH | 4.06 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 6.43 |
| Mount/Trim Color | White |
| Mount/Trim Material | Polycarbonate |
| Mount Type | 4 Screw Bracket Mount |
| NAPA Part Number | 07096C |
| Number of Diodes/Bulbs | 1 |
| Packaging Type | Standard |
| Part Number | 07096C4 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | R |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Back-Up Lights |
| Total Depth_MMT | 51.56 |
| Total Depth | 2.03 |
| Temp. Description | Rectangular B/U Clear |
| Total Height_MMT | 132.59 |
| Total Height | 5.22 |
| Total Width_MMT | 164.08 |
| Total Width | 6.46 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111096931 |
| VMRS | 034-003-074 |
| Weight | 2 |
