Bus, Incandescent, Red, Rectangular, Stop/Turn/Tail, 4 Screw, Socket Assembly

07098

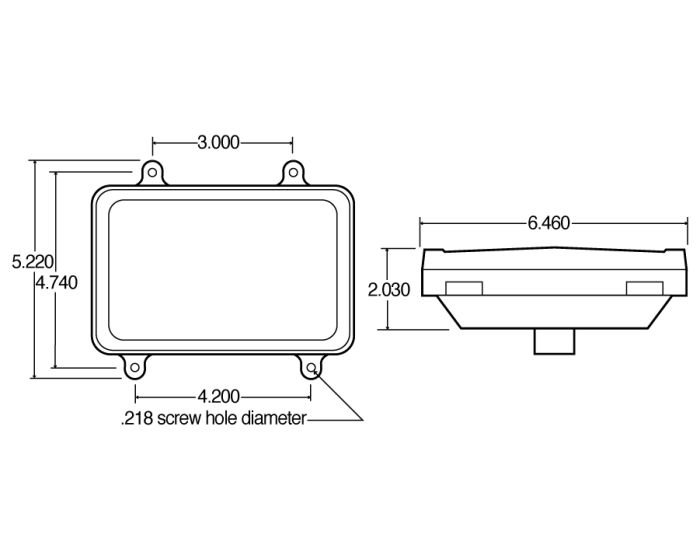

Recess mounts using two screws at 30" centers and two screws at 42" centers
  • No Plug
  • Socket Assembly
Need To Order By Phone?

(800) - 562 - 5012

Product Name Bus, Incandescent, Red, Rectangular, Stop/Turn/Tail, 4 Screw, Socket Assembly
Brand TL
Category Stop/Turn/Tail
Warranty 1-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 07098
Country of Origin ZZ
Diamond Shell (Yes/No) No
Features & Benefits Recess mounts using two screws at 30" centers and two screws at 42" centers
Feature Highlights No Plug|Socket Assembly
Itm Id 2034589
KIT (Yes/No) No
Lens Shape Rectangular
Lighting Technology Incandescent
Lamp Connection Socket Assembly
Lens Color Red
Lens Height_INH 6.46
Lens Material Polycarbonate
Lens Width_INH 6.46
Mount Type 4 Screw
NAPA Part Number 07098
Packaging Type Standard
Part Number 07098-4
Plug Side One No Plug
Plug Side Two No Plug
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met I6|P|S2|T2
Std Carton Qty 1
Taxonomy Lights.Stop/Turn/Tail Lights
Total Depth_MMT 51.56
Total Depth 2.03
Temp. Description Rectangular S/T, Bulk
Total Height_MMT 132.59
Total Height 5.22
Total Width_MMT 164.08
Total Width 6.46
UNSPSC/Tariff 25172900
UPC 0735111009603
VMRS 034-002-013
Weight 22
