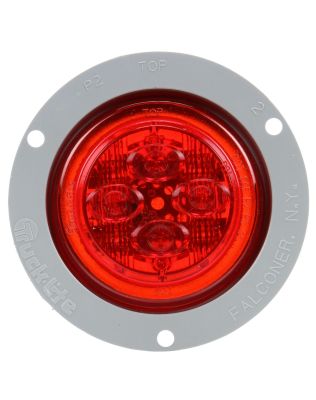

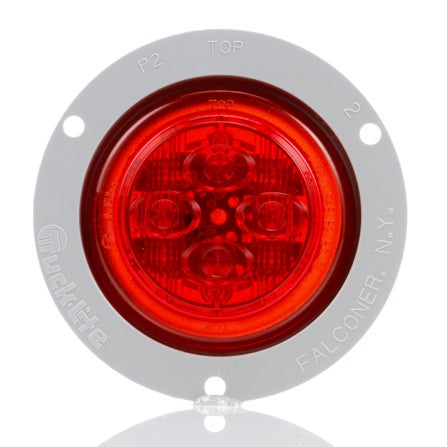

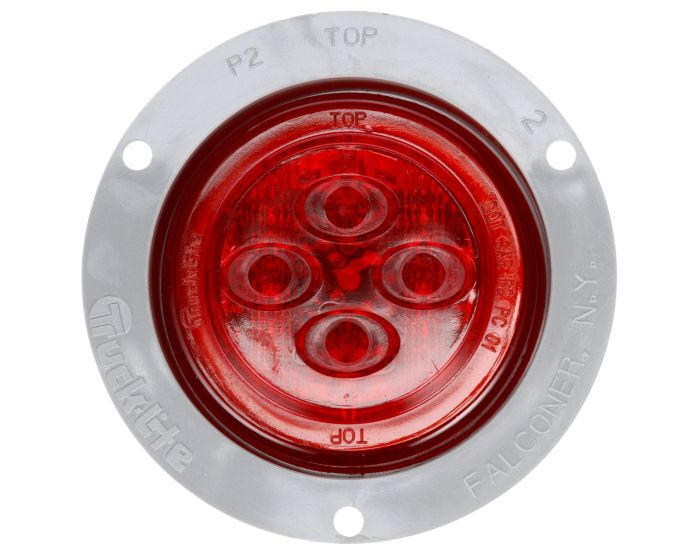

Product Name | 10 Series, Low Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flush Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit |
---|---|
Brand | TL |
Category | Marker Clearance Light |
Series | 10 Series |
Warranty | Lifetime |
Country of Origin | ZZ |
Diamond Shell (Yes/No) | No |
Features & Benefits | |Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Most advanced and cost effect 2-1/2'' clearance and marker lamp|SAE PC-rated for combination clearance/marker applications |
Feature Highlights | PL-10|Fit 'N Forget M/C|Kit|12 V |
Housing Material | Polycarbonate |
Itm Id | 2041172 |
KIT (Yes/No) | Yes |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | Fit 'N Forget M/C |
Lens Color | Red |
Lens Height_INH | 2.8 |
Lens Material | Polycarbonate |
Lens Width_INH | 2.8 |
Mount/Trim Color | Gray |
Mount/Trim Material | Polycarbonate |
Mount Type | Flush Mount |
NAPA Part Number | 10091R |
Number of Diodes/Bulbs | 8 |
Number of Wires | 2 |
Packaging Type | Standard |
Part Number | 10091R4 |
Plug Side One (Simplified) | Fit 'N Forget M/C |
Plug Side One | Fit 'N Forget M/C |
Plug Side Two | Female PL-10 |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Sealed |
Standards Met | P2|PC |
Std Carton Qty | 1 |
Taxonomy | Lights.Marker & Clearance Lights |
Total Depth_MMT | 43.9 |
Total Depth | 1.73 |
Temp. Description | LED Mdl 10 Combo, Low Profile |
Total Height_MMT | 88.6 |
Total Height | 3.49 |
Total Length | .1 |
Total Width_MMT | 43.9 |
Total Width | 1.73 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111061359 |
VMRS | 034-004-253 |
Voltage (VLT) | 12 |
Weight | .2 |
