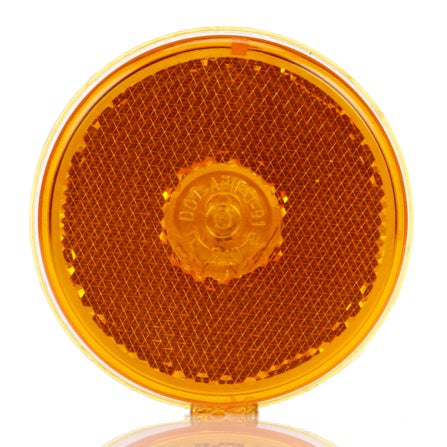

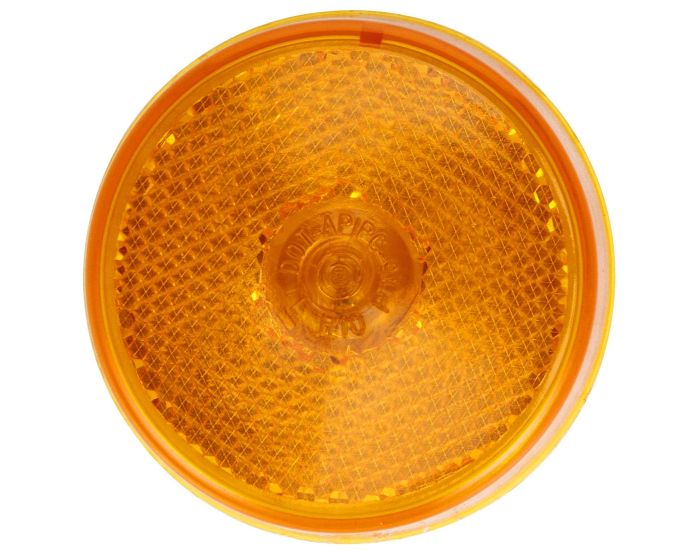

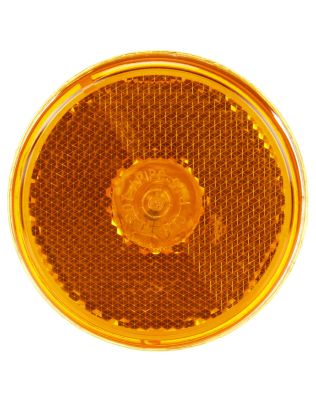

10 Series, Incandescent, Yellow Round, 1 Bulb, Marker Clearance Light, PC, Black PVC Grommet Mount, Reflectorized, PL-10, Ring Terminal/Stripped End, 12V, Kit
10525Y
Lens and housing are sonically sealed|High-impact polycarbonate construction|12V, 15,000-hour-rated bulb life|Available in either 12V|Meets PC requirement on a 45-degree angle in mounting devices #10708, #10720, #00803 or #00804|Replaces Signal-Stat 1010 and 1011 series
- PL-10
- Kit
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 10 Series, Incandescent, Yellow Round, 1 Bulb, Marker Clearance Light, PC, Black PVC Grommet Mount, Reflectorized, PL-10, Ring Terminal/Stripped End, 12V, Kit |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 10 Series |
| Warranty | 1-Year |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Lens and housing are sonically sealed|High-impact polycarbonate construction|12V, 15,000-hour-rated bulb life|Available in either 12V|Meets PC requirement on a 45-degree angle in mounting devices #10708, #10720, #00803 or #00804|Replaces Signal-Stat 1010 and 1011 series |
| Feature Highlights | PL-10|Kit|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2046141 |
| KIT (Yes/No) | Yes |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-10 |
| Lens Color | Yellow |
| Lens Height_INH | 2.54 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.54 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Kit |
| NAPA Part Number | 10525Y |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 10525Y4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two | Ring Terminal|Stripped End |
| Reflectorized (Yes/No) | Yes |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | A|P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 17.78 |
| Total Depth | .7 |
| Temp. Description | Mdl 10 W/ Reflex Grommet Mount |
| Total Height_MMT | 64.52 |
| Total Height | 2.54 |
| Total Length | .33 |
| Total Width_MMT | 64.52 |
| Total Width | 2.54 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111009825 |
| VMRS | 034-004-253 |
| Voltage (VLT) | 12 |
| Weight | .2 |
