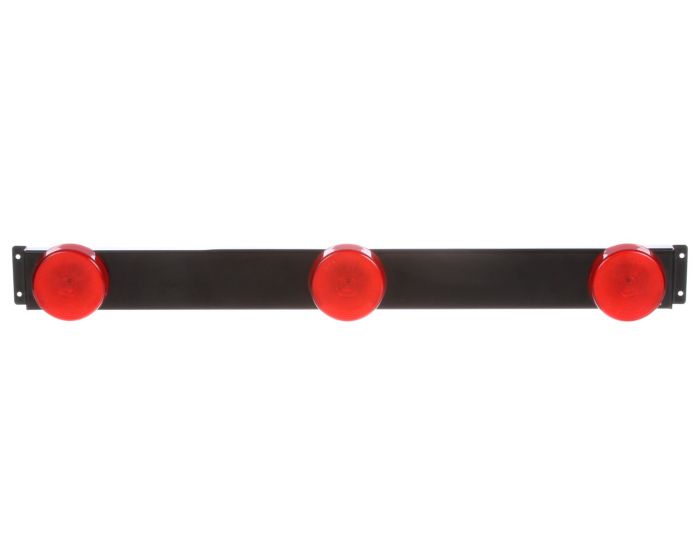

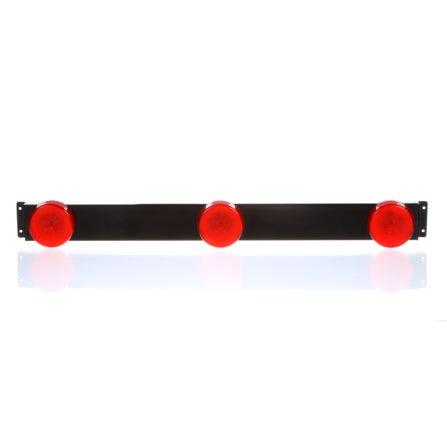

10 Series, Incandescent, Identification Bar, Round, Red, 3 Lights, 9" Centers, Black, 12V, Kit
10745R
Features rugged stainless steel or black enameled ID bar|Lamps are mounted on 6" or 9" centers
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 10 Series, Incandescent, Identification Bar, Round, Red, 3 Lights, 9" Centers, Black, 12V, Kit |
|---|---|
| Brand | TL |
| Category | Identification Bar |
| Series | 10 Series |
| Warranty | 1-Year |
| Center Distance (INH) | 9 |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 2.5" |
| Country of Origin | ZZ |
| Features & Benefits | Features rugged stainless steel or black enameled ID bar|Lamps are mounted on 6" or 9" centers |
| Housing Material | Polycarbonate |
| Itm Id | 2048016 |
| KIT (Yes/No) | Yes |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-10 |
| Lens Color | Red |
| Lens Height_INH | 2 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Steel |
| Mount Type | 4 Screw Bracket Mount |
| NAPA Part Number | 10745R |
| Number of Diodes/Bulbs | 1 |
| Number of Lights | 3 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 10745R4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two | Stripped End|Ring Terminal |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Identification Bars |
| Total Depth_MMT | 50.8 |
| Total Depth | 2 |
| Temp. Description | Mdl 10 Id Bar Kit - 9" Centers |
| Total Height_MMT | 36.83 |
| Total Height | 1.45 |
| Total Length | 0.33 |
| Total Width_MMT | 558.8 |
| Total Width | 22 |
| UNSPSC/Tariff | 39111706 |
| UPC | 7.35111E+11 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | 0.99 |
Currently no product available
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.

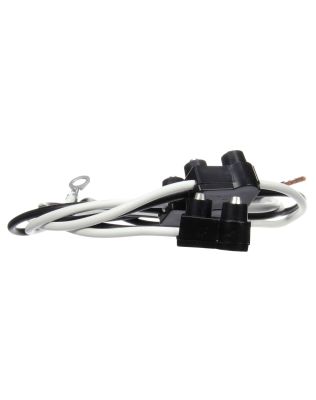

Replacement Parts / Kit Components
