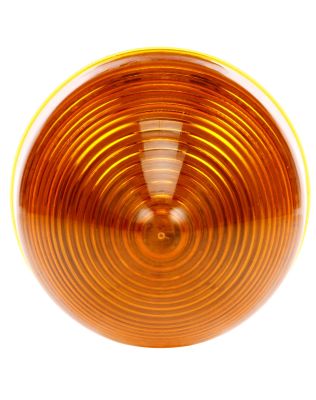

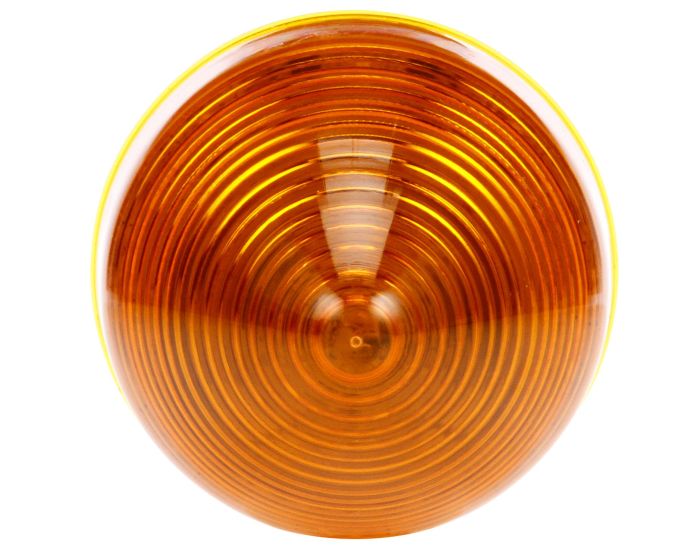

Signal-Stat, LED, Yellow Beehive, 13 Diode, Marker Clearance Light, P2, PL-10, 12V
1075A
Popular replacement for cab marker or corner trailer applications|Standard PL-10 connection|Not recommended for use with cam-on mounts or PC applications|Meets SAE 592e standards
- No Plug
- PL-10
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Yellow Beehive, 13 Diode, Marker Clearance Light, P2, PL-10, 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Marker Clearance Light |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Common Root | 1075A |
| Country of Origin | TW |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Popular replacement for cab marker or corner trailer applications|Standard PL-10 connection|Not recommended for use with cam-on mounts or PC applications|Meets SAE 592e standards |
| Feature Highlights | No Plug|PL-10|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2905137 |
| KIT (Yes/No) | No |
| Lens Shape | Beehive |
| Lighting Technology | LED |
| Lamp Connection | PL-10 |
| Lens Color | Yellow |
| Lens Height_INH | 2.5 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.5 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 1075A |
| Number of Diodes/Bulbs | 13 |
| Packaging Type | Standard |
| Part Number | SS1075A-S |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 63.5 |
| Total Depth | 2.5 |
| Temp. Description | LED Signal-Stat Mdl 10 Beehive |
| Total Height_MMT | 63.5 |
| Total Height | 2.5 |
| Total Length | .1 |
| Total Width_MMT | 63.5 |
| Total Width | 2.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111158035 |
| VMRS | 034-004-021 |
| Voltage (VLT) | 12 |
| Weight | .13 |
