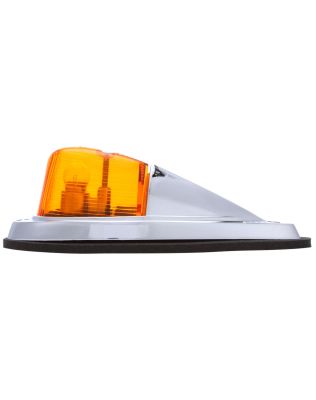

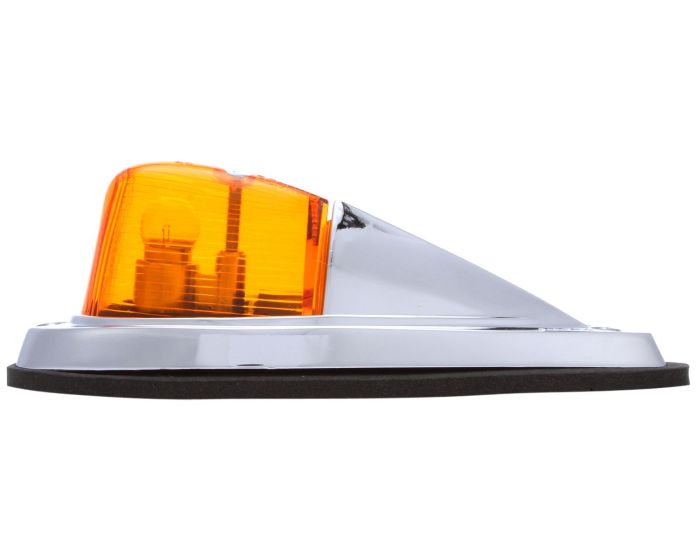

Product Name | Signal-Stat, Incandescent, Yellow Triangular, 1 Bulb, Marker Clearance Light, P2, Chrome Zinc 2 Screw, Hardwired, Stripped End, 12V |
---|---|
Brand | Signal-Stat |
Category | Marker Clearance Light |
Series | Signal-Stat |
Warranty | 1-Year |
Common Root | 1312A |
Country of Origin | ZZ |
Diamond Shell (Yes/No) | No |
Features & Benefits | One-piece chrome die-cast housing|Includes Neoprene mounting pad to cushion lamp for long bulb life|Fits securely on all flat or slightly curved surfaces|Single retaining screw holds lens in place |
Feature Highlights | Stripped End|Hardwired|12 V |
Housing Material | Die Cast Zinc |
Itm Id | 1953268 |
KIT (Yes/No) | No |
Lens Shape | Triangular |
Lighting Technology | Incandescent |
Lamp Connection | Hardwired |
Lens Color | Yellow |
Lens Height_INH | 1.72 |
Lens Material | Acrylic |
Lens Width_INH | 1.89 |
Mount/Trim Color | Chrome |
Mount/Trim Material | Zinc |
Mount Type | 2 Screw |
NAPA Part Number | 1312A |
Number of Diodes/Bulbs | 1 |
Number of Wires | 1 |
Packaging Type | Standard |
Part Number | SS1312A-S |
Plug Side One | Hardwired |
Plug Side Two | Stripped End |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Bulb Replaceable |
Standards Met | P2|PC |
Std Carton Qty | 1 |
Taxonomy | Lights.Marker & Clearance Lights |
Total Depth_MMT | 69.85 |
Total Depth | 2.75 |
Temp. Description | Die Cast Chrome Cab Marker |
Total Height_MMT | 63.5 |
Total Height | 2.5 |
Total Length | .59 |
Total Width_MMT | 203.2 |
Total Width | 8 |
UNSPSC/Tariff | 25172900 |
UPC | 0724956048540 |
VMRS | 034-004-021 |
Voltage (VLT) | 12 |
Weight | .4 |
