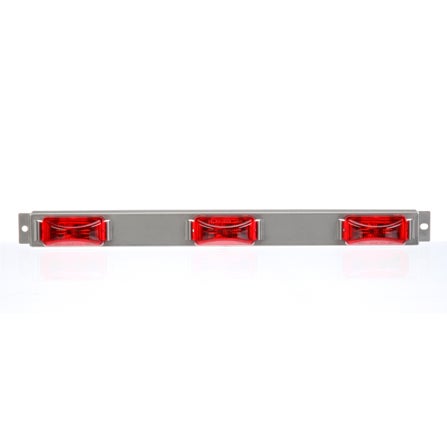

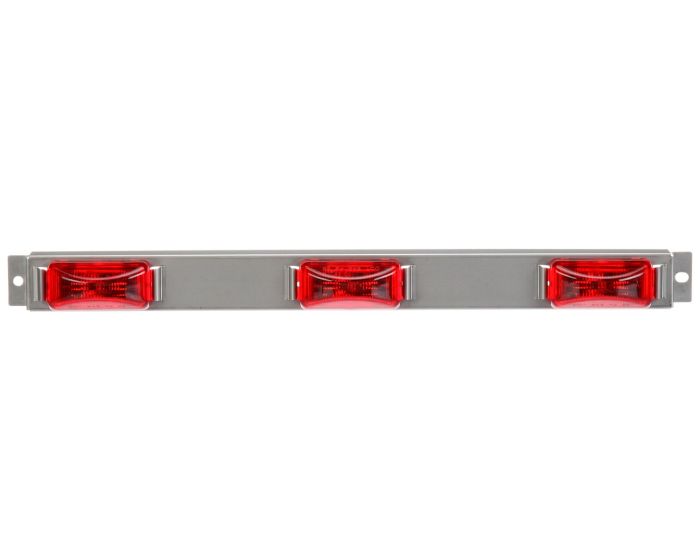

15 Series, LED, Identification Bar, Rectangular, Red, 3 Lights, 6" Centers, Silver, 12V, Kit

15050R

Designed to fit applications requiring minimal space|Features stainless steel bar with three LED Model 15 lamps on 6" centers|Electronics completely sealed in epoxy to resist corrosion and moisture|Sonically sealed lens and housing|Less susceptible to shock and vibration|Draws less current, allowing more power for other vehicle requirements|Direct pin-to-circuit board solders assure vibration-resistant contacts
Brand TL
Business Unit Truck-Lite (NA)
Category Identification Bar
Center Distance (INH) 6
Common Size 1"x2"
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Country of Origin ZZ
Features & Benefits Designed to fit applications requiring minimal space|Features stainless steel bar with three LED Model 15 lamps on 6" centers|Electronics completely sealed in epoxy to resist corrosion and moisture|Sonically sealed lens and housing|Less susceptible to shock and vibration|Draws less current, allowing more power for other vehicle requirements|Direct pin-to-circuit board solders assure vibration-resistant contacts
Housing Material Polycarbonate
Itm Id 2054707
KIT (Yes/No) Yes
Lamp Connection PL-10
Lamp Connection (Simplified) PL-10
Lens Color Red

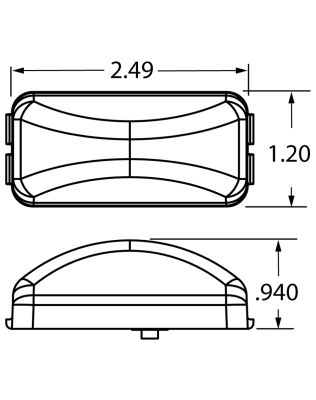

Lens Height (INH) 1.2
Lens Material Polycarbonate
Lens Shape Rectangular
Lens Width (INH) 2.49
Lighting Technology LED
Mount Type 2 Screw Bracket Mount
Mount/Trim Color Silver
Mount/Trim Material Stainless Steel
NAPA Part Number 15050R
Number of Diodes/Bulbs 1
Number of Lights 3
Number of Wires 2
Packaging Type Standard
Part Number 15050R4
Plug Side One PL-10
Plug Side One (Simplified) PL-10
Plug Side Two .180 Bullet|Ring Terminal
Sealed/Bulb Replaceable Sealed
Series 15 Series
Standards Met P2
Std Carton Qty 1
Taxonomy Lights.Identification Bars
Temp. Description LED Mdl 15 Id Bar Kit - 6" Cen
Total Depth 1.59
Total Depth (MMT) 40.39
Total Height 1.38
Total Height (MMT) 35.05
Total Length 0.05
Total Width 16.5
Total Width (MMT) 419.1
UNSPSC/Tariff 39111706
UPC 735111135524
VMRS 034-004-281
Voltage (VLT) 12
Warranty 3-Year
Weight 0.3
Label 1 No
Label 2 No
Label 3 No
Show Size Chart No
