15 Series, LED, Identification Bar, Rectangular, Yellow, 3 Lights, 6" Centers, Silver, 12V, Kit
15050Y
Designed to fit applications requiring minimal space|Features stainless steel bar with three LED Model 15 lamps on 6" centers|Electronics completely sealed in epoxy to resist corrosion and moisture|Sonically sealed lens and housing|Less susceptible to shock and vibration|Draws less current, allowing more power for other vehicle requirements|Direct pin-to-circuit board solders assure vibration-resistant contacts
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 15 Series, LED, Identification Bar, Rectangular, Yellow, 3 Lights, 6" Centers, Silver, 12V, Kit |
|---|---|
| SKU | 15050Y |
| Brand | TL |
| Category | Identification Bar |
| Series | 15 Series |
| Warranty | 3-Year |
| Center Distance (INH) | 6 |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 1"x2" |
| Country of Origin | ZZ |
| Features & Benefits | Designed to fit applications requiring minimal space|Features stainless steel bar with three LED Model 15 lamps on 6" centers|Electronics completely sealed in epoxy to resist corrosion and moisture|Sonically sealed lens and housing|Less susceptible to shock and vibration|Draws less current, allowing more power for other vehicle requirements|Direct pin-to-circuit board solders assure vibration-resistant contacts |
| Housing Material | Polycarbonate |
| Itm Id | 2410441 |
| KIT (Yes/No) | Yes |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | PL-10 |
| Lens Color | Yellow |

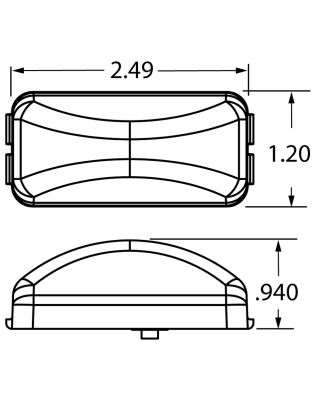

| Lens Height_INH | 1.2 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.49 |
| Mount/Trim Color | Silver |
| Mount/Trim Material | Stainless Steel |
| Mount Type | 2 Screw Bracket Mount |
| NAPA Part Number | 15050Y |
| Number of Diodes/Bulbs | 3 |
| Number of Lights | 3 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 15050Y4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two | .180 Bullet|Ring Terminal |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Identification Bars |
| Total Depth_MMT | 40.39 |
| Total Depth | 1.59 |
| Temp. Description | LED Mdl 15 Id Bar Kit- 6" Cent |
| Total Height_MMT | 35.05 |
| Total Height | 1.38 |
| Total Length | 0.05 |
| Total Width_MMT | 419.1 |
| Total Width | 16.5 |
| UNSPSC/Tariff | 39111706 |
| UPC | 7.35111E+11 |
| VMRS | 034-004-281 |
| Voltage (VLT) | 12 |
| Weight | 0.75 |
