Product Name | 15 Series, LED, 3 Diode, License Light, Rectangular, Bracket Mount, Hardwired, Female PL-10, 12V |
---|---|
Brand | TL |
Category | License Light |
Series | 15 Series |
Warranty | Lifetime |
Common Root | 15205 |
Common Size | 1"x2" |
Country of Origin | US |
Current_AMP | 0.03 |
Diamond Shell (Yes/No) | No |
Features & Benefits | Meets SAE J587 and European ECE Regulations 4|Hardwired design with adapter plug for quick changeover without rewiring|Functions as utility lamp or license lamp when properly mounted using license plate brackets #00820, #15729, #15730, #15732 or #15736 |
Housing Material | Polycarbonate |
Itm Id | 2056243 |
KIT (Yes/No) | No |
Lens Shape | Rectangular |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lens Color | Clear |

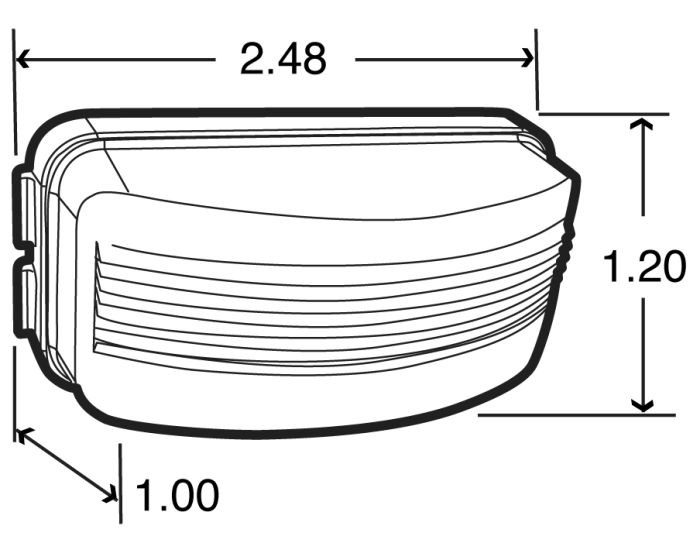

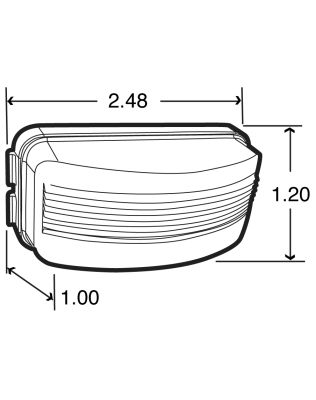

Lens Height_INH | 1.2 |
Lens Material | Polycarbonate |
Lens Width_INH | 2.48 |
Mount Type | Bracket Mount Kit |
NAPA Part Number | 15205 |
Number of Diodes/Bulbs | 3 |
Number of Wires | 2 |
Packaging Type | Standard |
Part Number | 15205-4 |
Plug Side One | Hardwired |
Plug Side Two | Female PL-10 |
Sealed/Bulb Replaceable | Sealed |
Standards Met | R4|J587|L |
Std Carton Qty | 5 |
Taxonomy | Lights.License Lights |
Total Depth_MMT | 25.4 |
Total Depth | 1 |
Temp. Description | LED Mdl 15 License Lamp Kit, 1 |
Total Height_MMT | 30.48 |
Total Height | 1.2 |
Total Width_MMT | 62.99 |
Total Width | 2.48 |
UNSPSC/Tariff | 25172900 |
UPC | 735111062165 |
VMRS | 034-002-042 |
Voltage (VLT) | 12 |
Weight | 0.13 |
