15 Series, LED, Red Rectangular, 1 Diode, Marker Clearance Light, P3, PL-10, 12V, Bulk

15250R3

Designed to fit applications requiring minimal space|Less susceptible to shock and vibration|Uses standard mounting holes and accessories|Not suitable for PC applications|Draws less current, allowing more power for other vehicle requirements|Direct pin-to-circuit board solders assure vibration-resistant contacts
  • No Plug
  • PL-10
  • Bulk
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 15 Series, LED, Red Rectangular, 1 Diode, Marker Clearance Light, P3, PL-10, 12V, Bulk
Brand TL
Category Marker Clearance Light
Series 15 Series
Warranty 3-Year
Common Root 15250R
Country of Origin ZZ
Diamond Shell (Yes/No) No
Features & Benefits Designed to fit applications requiring minimal space|Less susceptible to shock and vibration|Uses standard mounting holes and accessories|Not suitable for PC applications|Draws less current, allowing more power for other vehicle requirements|Direct pin-to-circuit board solders assure vibration-resistant contacts
Feature Highlights No Plug|PL-10|Bulk|12 V
Housing Material Polycarbonate
Itm Id 2057001
KIT (Yes/No) No
Lens Shape Rectangular
Lighting Technology LED
Lamp Connection PL-10
Lens Color Red
Lens Height_INH 1.2
Lens Material Polycarbonate
Lens Width_INH 2.49
Mount Type Bracket Mount
NAPA Part Number 15250R3
Number of Diodes/Bulbs 1
Packaging Type Bulk
Part Number 15250R3
Plug Side One No Plug
Plug Side Two No Plug
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|P3
Std Carton Qty 50
Taxonomy Lights.Marker & Clearance Lights

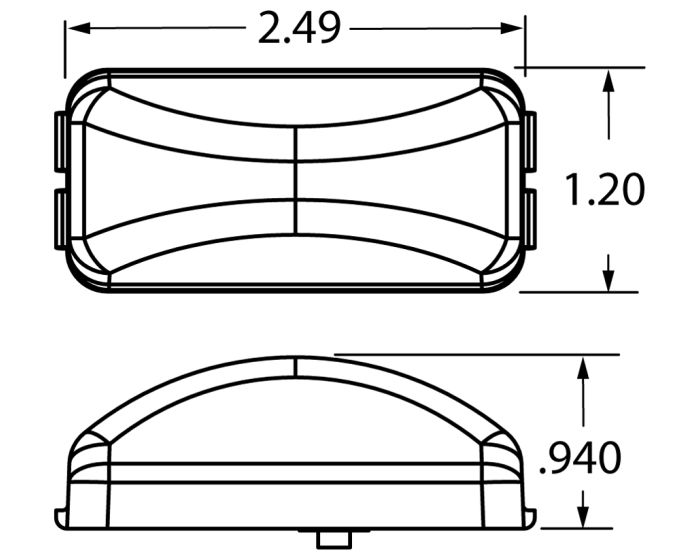

Total Depth_MMT 23.88
Total Depth .94
Temp. Description LED Mdl 15 M/C Lamp, Bulk
Total Height_MMT 30.48
Total Height 1.2
Total Length .05
Total Width_MMT 63.25
Total Width 2.49
UNSPSC/Tariff 25172900
UPC 0735111081555
VMRS 034-004-021
Voltage (VLT) 12
Weight 10
