15 Series, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, P3, PL-10, 12V, Bulk
15250Y3
Designed to fit applications requiring minimal space|Less susceptible to shock and vibration|Uses standard mounting holes and accessories|Not suitable for PC applications|Draws less current, allowing more power for other vehicle requirements|Direct pin-to-circuit board solders assure vibration-resistant contacts
- No Plug
- PL-10
- Bulk
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 15 Series, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, P3, PL-10, 12V, Bulk |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 15 Series |
| Warranty | 3-Year |
| Common Root | 15250Y |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Designed to fit applications requiring minimal space|Less susceptible to shock and vibration|Uses standard mounting holes and accessories|Not suitable for PC applications|Draws less current, allowing more power for other vehicle requirements|Direct pin-to-circuit board solders assure vibration-resistant contacts |
| Feature Highlights | No Plug|PL-10|Bulk|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2057078 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | PL-10 |
| Lens Color | Yellow |

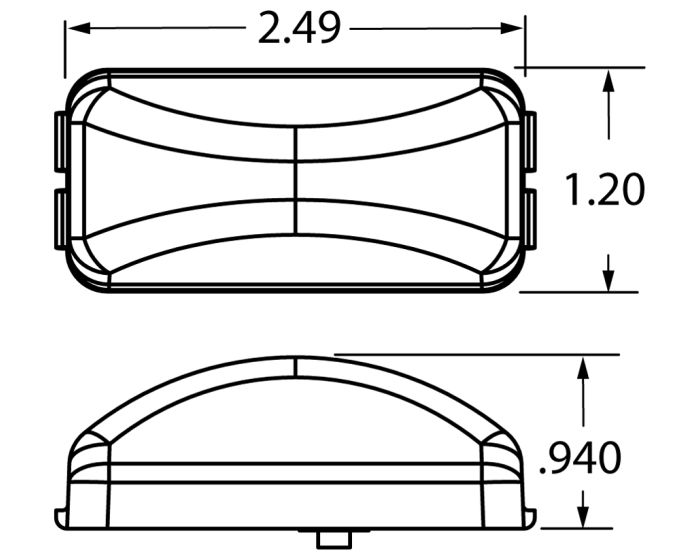

| Lens Height_INH | 1.2 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.49 |
| Mount Type | Bracket Mount |
| NAPA Part Number | 15250Y3 |
| Number of Diodes/Bulbs | 3 |
| Packaging Type | Bulk |
| Part Number | 15250Y3 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|P3 |
| Std Carton Qty | 50 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 23.88 |
| Total Depth | .94 |
| Temp. Description | LED Mdl 15 M/C Lamp, Bulk |
| Total Height_MMT | 30.48 |
| Total Height | 1.2 |
| Total Length | .05 |
| Total Width_MMT | 63.25 |
| Total Width | 2.49 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111081562 |
| VMRS | 034-004-021 |
| Voltage (VLT) | 12 |
| Weight | 10 |
