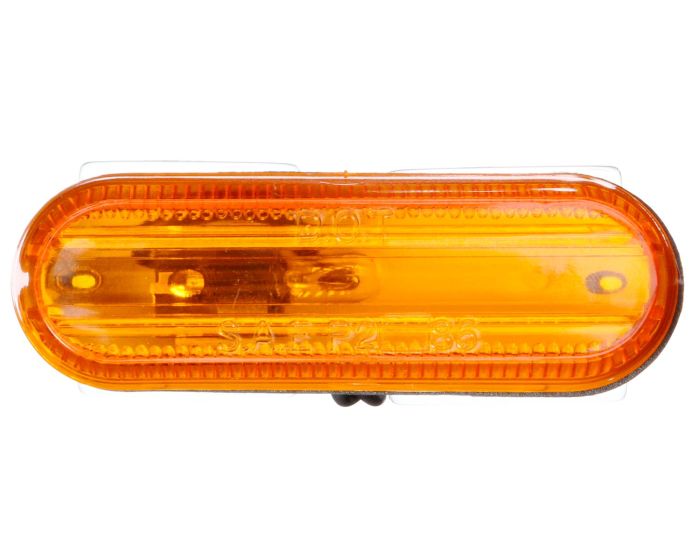

Signal-Stat, Slim line, Incandescent, Yellow Oval, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V
1555A
Ideal for narrow rail or channel mounted applications|Can be mounted vertically or horizontally|Low profile Snap-On lens allows for easy bulb replacement|Acrylic lens, ABS base|SAE PC-rated for combination clearance/marker application
- Stripped End
- Hardwired
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, Slim line, Incandescent, Yellow Oval, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Marker Clearance Light |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Country of Origin | TW |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Ideal for narrow rail or channel mounted applications|Can be mounted vertically or horizontally|Low profile Snap-On lens allows for easy bulb replacement|Acrylic lens, ABS base|SAE PC-rated for combination clearance/marker application |
| Feature Highlights | Stripped End|Hardwired|12 V |
| Housing Material | ABS |
| Itm Id | 1955431 |
| KIT (Yes/No) | No |
| Lens Shape | Oval |
| Lighting Technology | Incandescent |
| Lamp Connection | Hardwired |
| Lens Color | Yellow |
| Lens Height_INH | 1.17 |
| Lens Material | Acrylic |
| Lens Width_INH | 3.52 |
| Mount Type | 2 Screw |
| NAPA Part Number | 1555A |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 1 |
| Packaging Type | Standard |
| Part Number | SS1555A-S |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 24.64 |
| Total Depth | .97 |
| Temp. Description | Slim Line Bulb Replaceable |
| Total Height_MMT | 29.72 |
| Total Height | 1.17 |
| Total Length | .27 |
| Total Width_MMT | 89.41 |
| Total Width | 3.52 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111155720 |
| VMRS | 034-004-024 |
| Voltage (VLT) | 12 |
| Weight | .25 |
