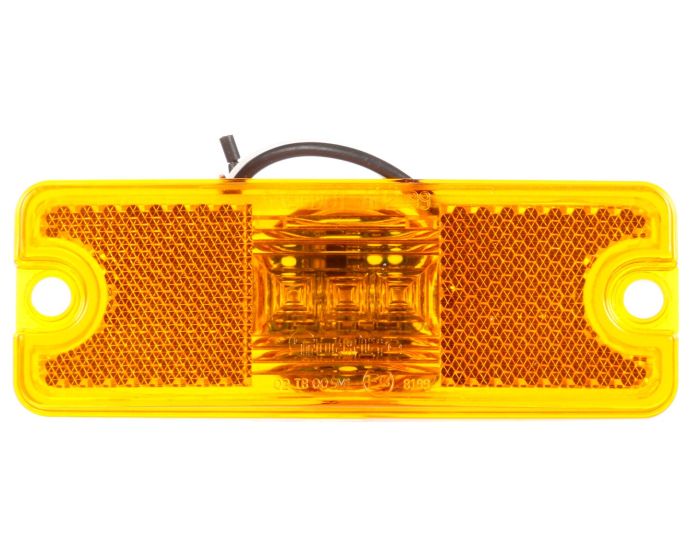

18 Series, European Approved, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, ECE, 2 Screw, Reflectorized, Hardwired, Blunt Cut, 12-24V, Kit

18011Y

Uses standard mounting holes and accessories|Draws less current, allowing more power for other vehicle requirements|OmniVolt versions also meet ECE standards|Not suitable for PC requirements|OmniVolt versions address increasing vehicle power demands by operating equally in electrical systems ranging from 10 to 30 volts|Meets SAE J592e standards|Meets SAE J594f when mounted with no rollout or rollback
  • Hardwired
  • Kit
  • Diamond Shell
  • Blunt Cut
Need To Order By Phone?

(800) - 562 - 5012

Product Name 18 Series, European Approved, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, ECE, 2 Screw, Reflectorized, Hardwired, Blunt Cut, 12-24V, Kit
Brand TL
Category Marker Clearance Light
Series 18 Series
Warranty 3-year
Common Root 18011Y
Country of Origin ZZ
Diamond Shell (Yes/No) Yes
Features & Benefits Uses standard mounting holes and accessories|Draws less current, allowing more power for other vehicle requirements|OmniVolt versions also meet ECE standards|Not suitable for PC requirements|OmniVolt versions address increasing vehicle power demands by operating equally in electrical systems ranging from 10 to 30 volts|Meets SAE J592e standards|Meets SAE J594f when mounted with no rollout or rollback
Feature Highlights Hardwired|Kit|Diamond Shell|Blunt Cut
Housing Material Acrylic
Itm Id 2060162
KIT (Yes/No) Yes
Lens Shape Rectangular
Lighting Technology LED
Lamp Connection Hardwired
Lens Color Yellow
Lens Height_INH 1.63
Lens Material Acrylic
Lens Width_INH 4.5
Mount/Trim Color Yellow
Mount Type 2 Screw
NAPA Part Number 18011Y
Number of Diodes/Bulbs 3
Number of Wires 2
Packaging Type Standard
Part Number 18011Y4
Plug Side One Hardwired
Plug Side Two Blunt Cut
Reflectorized (Yes/No) Yes
Sealed/Bulb Replaceable Sealed
Standards Met A|P2
Std Carton Qty 1
Taxonomy Lights.Marker & Clearance Lights
Total Depth_MMT 25.4
Total Depth 1
Temp. Description LED Mdl 18 European Approved 1
Total Height_MMT 41.4
Total Height 1.63
Total Length .02
Total Width_MMT 114.3
Total Width 4.5
UNSPSC/Tariff 25172900
UPC 0735111062394
VMRS 034-004-021
Voltage (VLT) 12|24
Weight .4
