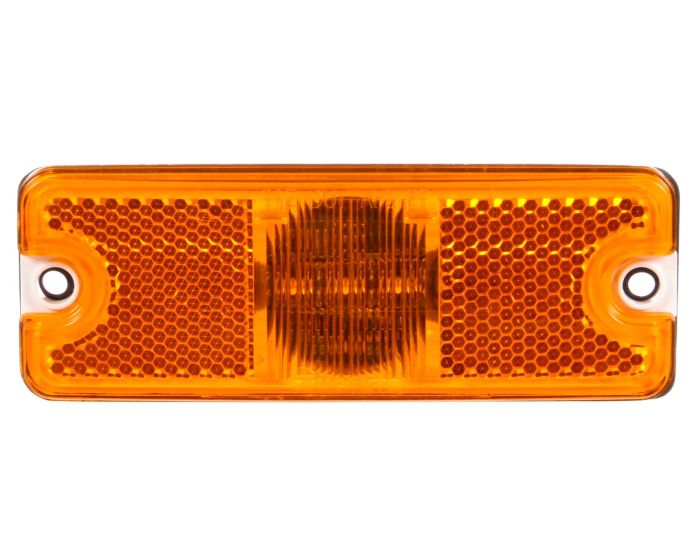

18 Series, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, P2, 2 Screw, Reflectorized, Diamond Shell, Hardwired, Weather Pack/12010972, 12V, Kit
18070Y
Uses standard mounting holes and accessories|Draws less current, allowing more power for other vehicle requirements|OmniVolt versions also meet ECE standards|Not suitable for PC requirements|OmniVolt versions address increasing vehicle power demands by operating equally in electrical systems ranging from 10 to 30 volts|Meets SAE J592e standards|Meets SAE J594f when mounted with no rollout or rollback
- Weather Connector
- Hardwired
- Kit
- Diamond Shell
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 18 Series, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, P2, 2 Screw, Reflectorized, Diamond Shell, Hardwired, Weather Pack/12010972, 12V, Kit |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 18 Series |
| Warranty | Lifetime |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | Yes |
| Features & Benefits | Uses standard mounting holes and accessories|Draws less current, allowing more power for other vehicle requirements|OmniVolt versions also meet ECE standards|Not suitable for PC requirements|OmniVolt versions address increasing vehicle power demands by operating equally in electrical systems ranging from 10 to 30 volts|Meets SAE J592e standards|Meets SAE J594f when mounted with no rollout or rollback |
| Feature Highlights | Weather Connector|Hardwired|Kit|Diamond Shell|12 V |
| Housing Material | Acrylic |
| Itm Id | 2060728 |
| KIT (Yes/No) | Yes |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Yellow |
| Lens Height_INH | 1.63 |
| Lens Material | Acrylic |
| Lens Width_INH | 4.5 |
| Mount/Trim Color | Yellow |
| Mount Type | 2 Screw |
| NAPA Part Number | 18070Y |
| Number of Diodes/Bulbs | 3 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 18070Y4 |
| Plug Side One | Hardwired |
| Plug Side Two | Weather Connector 12010972 |
| Reflectorized (Yes/No) | Yes |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | A|P2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 25.4 |
| Total Depth | 1 |
| Temp. Description | LED Mdl 18 M/C Lamp Kit, Diamo |
| Total Height_MMT | 41.4 |
| Total Height | 1.63 |
| Total Length | .05 |
| Total Width_MMT | 114.3 |
| Total Width | 4.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111062516 |
| VMRS | 034-004-253 |
| Voltage (VLT) | 12 |
| Weight | .2 |
Currently no product available
