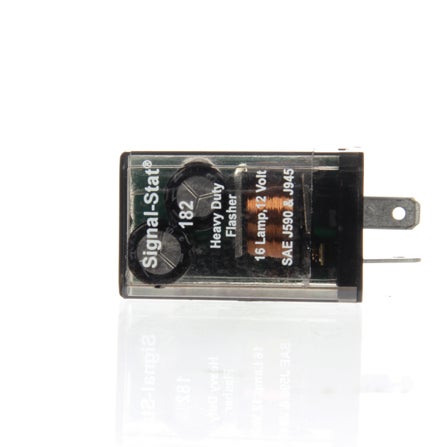

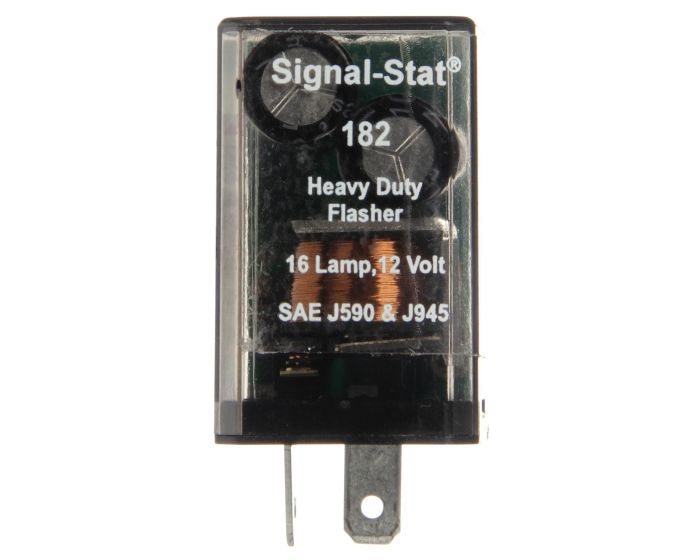

Signal-Stat, 16 Light Electro-Mechanical, Plastic Flasher Module, 70-120fpm, 12V, 2 Blade Terminals
182
Flashes at a rate of 70 to 120 FPM, with first flash less than 13 seconds after startup|Functions at 13v for 36 continuous hours with 16-32 cp lamps at 35 amp max (#182 and 183), 20-32 cp lamps at 45 amp max (#282 and 283), 10-32 cp lamps alternating at 25 amp max per side (#286)|Five available versions include 16-lamp with 2- or 3- terminal, 20-lamp with 2- or 3- terminal and alternating 10-lamp with 3- terminal|Features ISO relay with electronic control circuits|Replaces Truck-Lite 97205-97209
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, 16 Light Electro-Mechanical, Plastic Flasher Module, 70-120fpm, 12V, 2 Blade Terminals |
|---|---|
| Brand | Signal-Stat |
| Category | Flasher Module |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Country of Origin | CA |
| Features & Benefits | Flashes at a rate of 70 to 120 FPM, with first flash less than 13 seconds after startup|Functions at 13v for 36 continuous hours with 16-32 cp lamps at 35 amp max (#182 and 183), 20-32 cp lamps at 45 amp max (#282 and 283), 10-32 cp lamps alternating at 25 amp max per side (#286)|Five available versions include 16-lamp with 2- or 3- terminal, 20-lamp with 2- or 3- terminal and alternating 10-lamp with 3- terminal|Features ISO relay with electronic control circuits|Replaces Truck-Lite 97205-97209 |
| Feature Highlights | 12 V |
| Flasher Ampere Capacity | FMVSS 108|SAE |
| Housing Material | Plastic |
| Itm Id | 1956434 |
| KIT (Yes/No) | No |
| Lamp Connection | 2 Blade Terminals |
| NAPA Part Number | 182 |
| NSN | FMVSS 108|SAE |
| Packaging Type | Standard |
| Part Number | SS182-S |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Flasher Modules |
| Total Depth_MMT | 28.45 |
| Total Depth | 1.12 |
| Temp. Description | 16 Lamp 12 Volt Flasher Rated |
| Total Height_MMT | 55.88 |
| Total Height | 2.2 |
| Total Width_MMT | 28.45 |
| Total Width | 1.12 |
| UNSPSC/Tariff | 39000000 |
| UPC | 735111146285 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | 0.33 |
