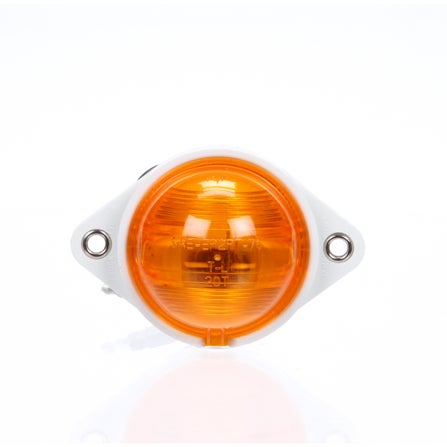

Incandescent, Yellow Round, 1 Bulb, Side Turn Signal, Bracket Mount, Hardwired, .180 Bullet, 12V, Kit

20316Y

Features snap-in lens with a 90 maximum edge visibility|Features side turn function, with two versions also meeting marker/clearance requirements
Need To Order By Phone?

(800) - 562 - 5012

Product Name Incandescent, Yellow Round, 1 Bulb, Side Turn Signal, Bracket Mount, Hardwired, .180 Bullet, 12V, Kit
ViewPoint (Y/N) No
New No
Sale No
Best Sellers No
Show Size Chart No
Brand TL
Business Unit Truck-Lite (NA)
Category Turn Signal
Series 20 Series
Warranty 1-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Size 2"
Country of Origin ZZ
Current Minor 0.5
Features & Benefits Features snap-in lens with a 90 maximum edge visibility|Features side turn function, with two versions also meeting marker/clearance requirements
Housing Material Polycarbonate
Itm Id 2068025
KIT (Yes/No) Yes
Lens Shape Round
Lighting Technology Incandescent
Lamp Connection Hardwired
Lamp Connection (Simplified) Hardwired
Lens Color Yellow
Lens Height_INH 2.28
Lens Material Polycarbonate
Lens Width_INH 2.28
Mount/Trim Color White
Mount/Trim Material Polycarbonate
Mount Type Bracket Mount Kit
NAPA Part Number 20316Y
Number of Diodes/Bulbs 1
Number of Wires 2
Packaging Type Standard
Part Number 20316Y4
Plug Side One Hardwired
Plug Side Two .180 Bullet
Position Side
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|E
Std Carton Qty 1
Taxonomy Lights.Turn Signal Lights
Total Depth_MMT 72.9
Total Depth 2.87
Temp. Description Mdl 20 Beehive S/T Lamp
Total Height_MMT 66.8
Total Height 2.63
Total Length 2.1
Total Width_MMT 96.77
Total Width 3.81
UNSPSC/Tariff 25172900
UPC 7.35111E+11
VMRS 034-003-071
Voltage (VLT) 12
Weight 0.4
