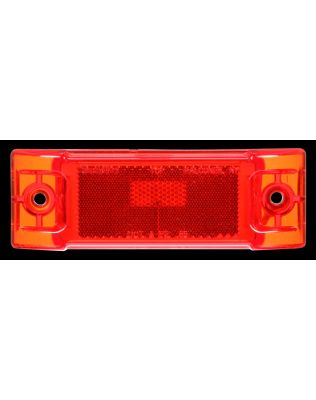

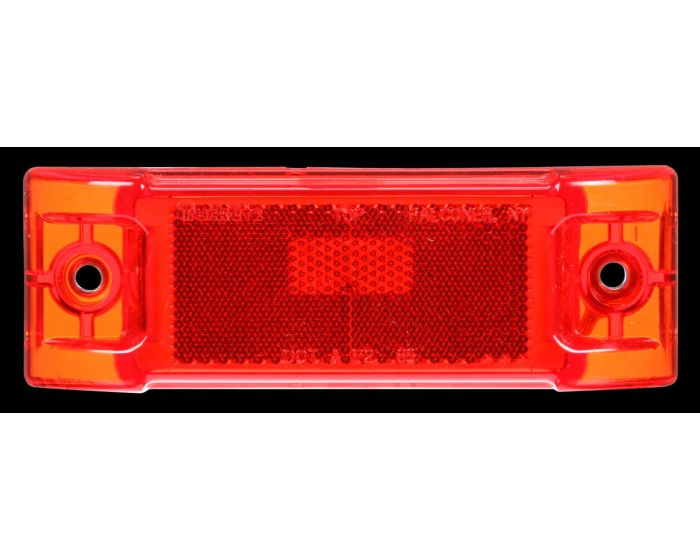

Super 21, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Reflectorized, Super 21 Plug, Stripped End, 12V, Kit, Pallet

21002RP

Available with standard or reflectorized lens|Suitable for PC requirements on a 45-degree angle with additional reflectors|Version available for ABS requirements|Optional gaskets available to improve seal between lamp and body|Kits with extension brackets are a direct replacement for Utility Trailer #03-5100-0-097/8
  • Stripped End
  • Pallet
  • Super 21 Plug
  • Kit
  • Diamond Shell
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name Super 21, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Reflectorized, Super 21 Plug, Stripped End, 12V, Kit, Pallet
Brand TL
Category Marker Clearance Light
Series Super 21
Warranty 2-Year
Common Root 21002R
Country of Origin ZZ
Diamond Shell (Yes/No) Yes
Features & Benefits Available with standard or reflectorized lens|Suitable for PC requirements on a 45-degree angle with additional reflectors|Version available for ABS requirements|Optional gaskets available to improve seal between lamp and body|Kits with extension brackets are a direct replacement for Utility Trailer #03-5100-0-097/8
Feature Highlights Stripped End|Pallet|Super 21 Plug|Kit|Diamond Shell|12 V
Housing Material ABS
Itm Id 2068746
KIT (Yes/No) Yes
Lens Shape Rectangular
Lighting Technology Incandescent
Lamp Connection Super 21 Plug
Lens Color Red
Lens Height_INH 2.03
Lens Material Acrylic
Lens Width_INH 6
Mount/Trim Color Red
Mount Type 2 Screw
Number of Diodes/Bulbs 1
Number of Wires 1
Packaging Type Pallet
Part Number 21002RP
Plug Side One (Simplified) Super 21 Plug
Plug Side One Super 21 Plug
Plug Side Two Stripped End
Reflectorized (Yes/No) Yes
Sealed/Bulb Replaceable Sealed
Standards Met A|P2
Std Carton Qty 600
Taxonomy Lights.Marker & Clearance Lights
Total Depth_MMT 33.02
Total Depth 1.3
Temp. Description Super Mdl 21 Reflectorized M/C
Total Height_MMT 51.56
Total Height 2.03
Total Length .33
Total Width_MMT 152.4
Total Width 6
UNSPSC/Tariff 25172900
UPC 0735111053378
VMRS 034-004-024
Voltage (VLT) 12
Weight 129.36
