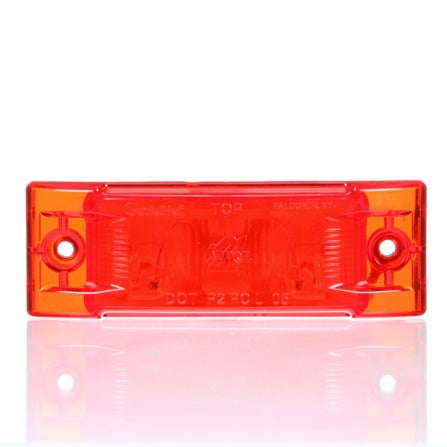

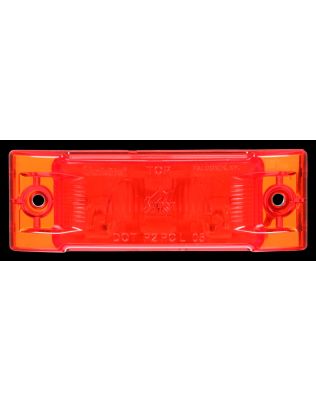

Super 21, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, PC, 2 Screw, Super 21 Plug, 12V
21200R
Available with standard or reflectorized lens|Suitable for PC requirements on a 45-degree angle with additional reflectors|Version available for ABS requirements|Optional gaskets available to improve seal between lamp and body|Kits with extension brackets are a direct replacement for Utility Trailer #03-5100-0-097/8
- No Plug
- Super 21 Plug
- Diamond Shell
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Super 21, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, PC, 2 Screw, Super 21 Plug, 12V |
|---|---|
| SKU | 21200R |
| Brand | TL |
| Category | Marker Clearance Light |
| Series | Super 21 |
| Warranty | 2-Year |
| Common Root | 21200R |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | Yes |
| Features & Benefits | Available with standard or reflectorized lens|Suitable for PC requirements on a 45-degree angle with additional reflectors|Version available for ABS requirements|Optional gaskets available to improve seal between lamp and body|Kits with extension brackets are a direct replacement for Utility Trailer #03-5100-0-097/8 |
| Feature Highlights | No Plug|Super 21 Plug|Diamond Shell|12 V |
| Housing Material | ABS |
| Itm Id | 2070432 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | Incandescent |
| Lamp Connection | Super 21 Plug |
| Lens Color | Red |
| Lens Height_INH | 2.03 |
| Lens Material | Acrylic |
| Lens Width_INH | 6 |
| Mount/Trim Color | Red |
| Mount Type | 2 Screw |
| NAPA Part Number | 21200R |
| Number of Diodes/Bulbs | 1 |
| Packaging Type | Standard |
| Part Number | 21200R4 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 33.02 |
| Total Depth | 1.3 |
| Temp. Description | Super Mdl 21 M/C Lamp, 12 Volt |
| Total Height_MMT | 51.56 |
| Total Height | 2.03 |
| Total Length | .33 |
| Total Width_MMT | 152.4 |
| Total Width | 6 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111039846 |
| VMRS | 034-004-024 |
| Voltage (VLT) | 12 |
| Weight | .24 |
