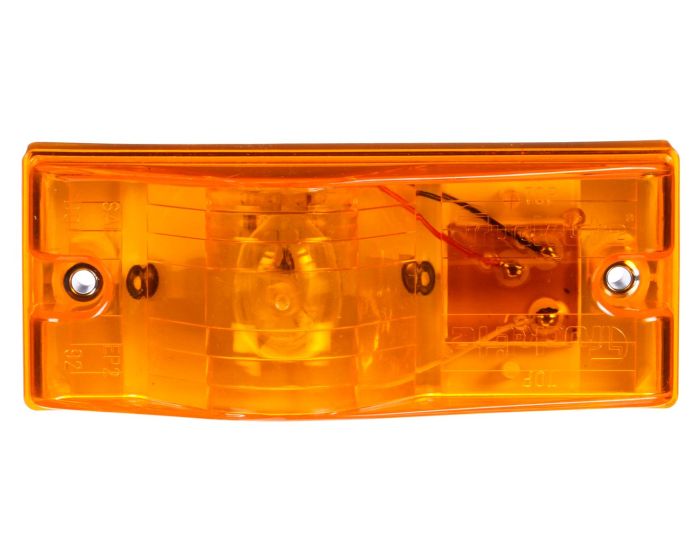

22 Series, Incandescent, Yellow Rectangular, 1 Bulb, Side Turn Signal, 2 Screw, PL-3, Stripped End/Ring Terminal, 12V, Kit, Bulk

22002Y3

Features dual contact marker/clearance and side turn or auxiliary turn functions|Mounts on surface of vehicle or with "L" bracket|Red lamp should be used for rear vehicle applications|Yellow version exceeds SAEJ2039 side turn and marker standards
  • PL-3
  • Kit
  • Bulk
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 22 Series, Incandescent, Yellow Rectangular, 1 Bulb, Side Turn Signal, 2 Screw, PL-3, Stripped End/Ring Terminal, 12V, Kit, Bulk
Brand TL
Category Turn Signal
Series 22 Series
Warranty 1-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 22002Y
Country of Origin ZZ
Current Minor .49
Features & Benefits Features dual contact marker/clearance and side turn or auxiliary turn functions|Mounts on surface of vehicle or with "L" bracket|Red lamp should be used for rear vehicle applications|Yellow version exceeds SAEJ2039 side turn and marker standards
Feature Highlights PL-3|Kit|Bulk|12 V
Housing Material Polycarbonate
Itm Id 2072850
KIT (Yes/No) Yes
Lens Shape Rectangular
Lighting Technology Incandescent
Lamp Connection PL-3
Lamp Connection (Simplified) PL-3
Lens Color Yellow
Lens Height_INH 2.4
Lens Material Polycarbonate
Lens Width_INH 5.94
Mount Type 2 Screw
NAPA Part Number 22002Y3
Number of Diodes/Bulbs 1
Number of Wires 3
Packaging Type Bulk
Part Number 22002Y3
Plug Side One (Simplified) PL-3
Plug Side One Right Angle PL-3
Plug Side Two Stripped End|Ring Terminal
Position Side
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|E
Std Carton Qty 50
Taxonomy Lights.Turn Signal Lights
Total Depth_MMT 61.21
Total Depth 2.41
Temp. Description Mdl 22 Side Turn Kit, Bulk
Total Height_MMT 60.96
Total Height 2.4
Total Length 2.1
Total Width_MMT 150.88
Total Width 5.94
UNSPSC/Tariff 25172900
UPC 0735111081968
VMRS 034-003-081
Voltage (VLT) 12
Weight 20
