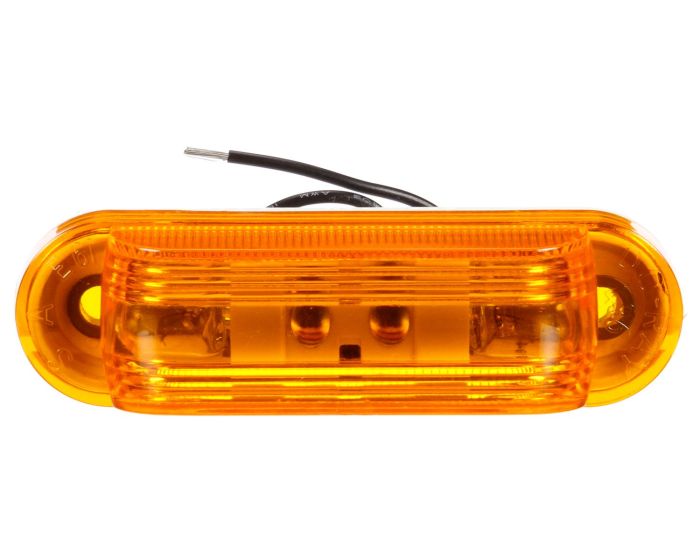

26 Series, Incandescent, Yellow Oval, 2 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V
26312Y
Features Snap-On lens for quick and easy bulb replacement|High-impact plastic lens and housing|Not suitable for PC requirements
- Stripped End
- Hardwired
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 26 Series, Incandescent, Yellow Oval, 2 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 26 Series |
| Warranty | 1-Year |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Features Snap-On lens for quick and easy bulb replacement|High-impact plastic lens and housing|Not suitable for PC requirements |
| Feature Highlights | Stripped End|Hardwired|12 V |
| Housing Material | ABS |
| Itm Id | 2090708 |
| KIT (Yes/No) | No |
| Lens Shape | Oval |
| Lighting Technology | Incandescent |
| Lamp Connection | Hardwired |
| Lens Color | Yellow |
| Lens Height_INH | 1.18 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4 |
| Mount/Trim Color | Yellow |
| Mount Type | 2 Screw |
| NAPA Part Number | 26312Y |
| Number of Diodes/Bulbs | 2 |
| Number of Wires | 1 |
| Packaging Type | Standard |
| Part Number | 26312Y4 |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 26.16 |
| Total Depth | 1.03 |
| Temp. Description | Mdl 26 M/C Lamp W/Plastic Hsng |
| Total Height_MMT | 29.97 |
| Total Height | 1.18 |
| Total Length | .27 |
| Total Width_MMT | 101.6 |
| Total Width | 4 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111044871 |
| VMRS | 034-004-024 |
| Voltage (VLT) | 12 |
| Weight | .12 |
