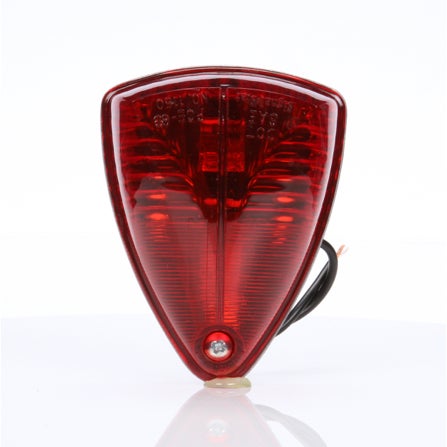

26 Series, Incandescent, Red Triangular, 1 Bulb, Marker Clearance Light, PC, 2 Screw, Hardwired, Stripped End, 12V
26354R
Surface mounts on two pass-through lens screws at 15" centers|Ground-through base|Popular for use on school buses and commercial vehicles|Heavy-duty steel and acrylic construction|Lens attaches to base with one screw|Optional zinc-plated steel guard provides additional protection
- Stripped End
- Hardwired
- Diamond Shell
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 26 Series, Incandescent, Red Triangular, 1 Bulb, Marker Clearance Light, PC, 2 Screw, Hardwired, Stripped End, 12V |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 26 Series |
| Warranty | 1-Year |
| Country of Origin | TW |
| Diamond Shell (Yes/No) | Yes |
| Features & Benefits | Surface mounts on two pass-through lens screws at 15" centers|Ground-through base|Popular for use on school buses and commercial vehicles|Heavy-duty steel and acrylic construction|Lens attaches to base with one screw|Optional zinc-plated steel guard provides additional protection |
| Feature Highlights | Stripped End|Hardwired|Diamond Shell|12 V |
| Housing Material | Steel |
| Itm Id | 2092199 |
| KIT (Yes/No) | No |
| Lens Shape | Triangular |
| Lighting Technology | Incandescent |
| Lamp Connection | Hardwired |
| Lens Color | Red |
| Lens Height_INH | 2.37 |
| Lens Material | Acrylic |
| Lens Width_INH | 3.37 |
| Mount Type | 2 Screw |
| NAPA Part Number | 26354R |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 1 |
| Packaging Type | Standard |
| Part Number | 26354R4 |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 49.53 |
| Total Depth | 1.95 |
| Temp. Description | Mdl 26 School Bus Marker/Cab M |
| Total Height_MMT | 60.2 |
| Total Height | 2.37 |
| Total Length | .69 |
| Total Width_MMT | 85.6 |
| Total Width | 3.37 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111011392 |
| VMRS | 034-004-021 |
| Voltage (VLT) | 12 |
| Weight | .3 |
