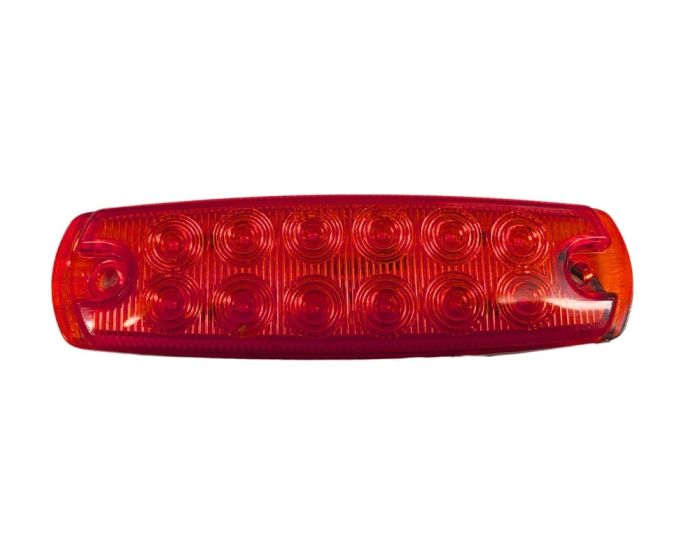

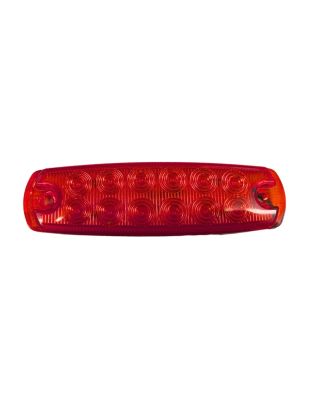

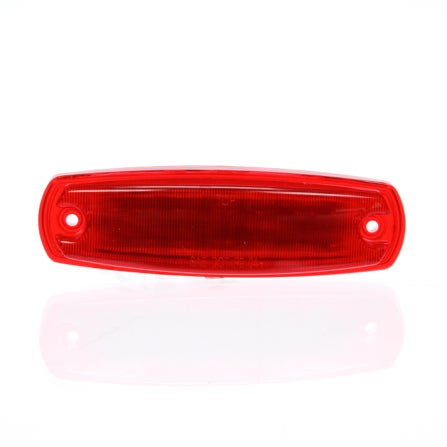

Signal-Stat, LED, Red Rectangular, 12 Diode, Marker Clearance Light, P2, Chrome ABS 2 Screw, Hardwired, Ring Terminal/Stripped End, 12V, Kit

2673

Full pattern light output|Popular on show truck and owner-operator applications|Hardwired design eliminates pin corrosion|Not suitable for PC applications|Kit includes lamp and chrome bezel|Popular Peterbilt replacement
  • Hardwired
  • Kit
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name Signal-Stat, LED, Red Rectangular, 12 Diode, Marker Clearance Light, P2, Chrome ABS 2 Screw, Hardwired, Ring Terminal/Stripped End, 12V, Kit
Brand Signal-Stat
Category Marker Clearance Light
Series Signal-Stat
Warranty 2-Year
Common Root 2673
Country of Origin TW
Diamond Shell (Yes/No) No
Features & Benefits Full pattern light output|Popular on show truck and owner-operator applications|Hardwired design eliminates pin corrosion|Not suitable for PC applications|Kit includes lamp and chrome bezel|Popular Peterbilt replacement
Feature Highlights Hardwired|Kit|12 V
Housing Material Acrylic
Itm Id 3067139
KIT (Yes/No) Yes
Lens Shape Rectangular
Lighting Technology LED
Lamp Connection Hardwired
Lens Color Red
Lens Material Acrylic
Mount/Trim Color Chrome
Mount/Trim Material ABS
Mount Type 2 Screw
NAPA Part Number 2673
Number of Diodes/Bulbs 12
Number of Wires 2
Packaging Type Standard
Part Number SS2673-S
Plug Side One Hardwired
Plug Side Two Ring Terminal|Stripped End
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|PC
Std Carton Qty 1
Taxonomy Lights.Marker & Clearance Lights
Total Depth_MMT 19.05
Total Depth .75
Temp. Description LED Clearance Side Marker Kit
Total Height_MMT 47.63
Total Height 1.88
Total Length .05
Total Width_MMT 158.75
Total Width 6.25
UNSPSC/Tariff 25172900
UPC 0735111171317
VMRS 034-004-021
Voltage (VLT) 12
Weight .16
