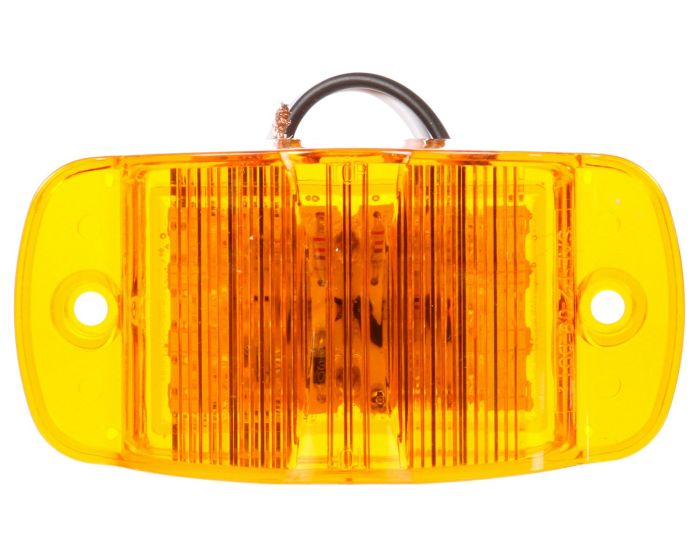

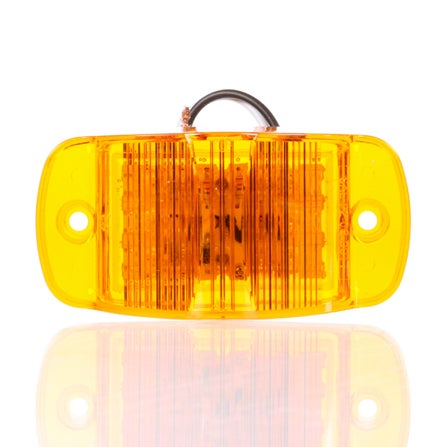

Signal-Stat, LED, Amber Rectangular, 8 Diodes, Marker Clearance Light, P3, Amber Polycarbonate Surface Mount, Hardwired, Stripped End, 12V
2674A
14 diode pattern|Hardwired design eliminates pin corrosion|SAE PC-rated for combination clearance/marker applications|Fits standard mounting holes|LEDs have no filament, therefore are extremely resistant to shock and vibration|LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture|Unique LED array displays full pattern output
- Stripped End
- Hardwired
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Amber Rectangular, 8 Diodes, Marker Clearance Light, P3, Amber Polycarbonate Surface Mount, Hardwired, Stripped End, 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Marker Clearance Light |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Country of Origin | CA |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | 14 diode pattern|Hardwired design eliminates pin corrosion|SAE PC-rated for combination clearance/marker applications|Fits standard mounting holes|LEDs have no filament, therefore are extremely resistant to shock and vibration|LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture|Unique LED array displays full pattern output |
| Feature Highlights | Stripped End|Hardwired|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 3067286 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Yellow |
| Lens Height_INH | 1.97 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 3.92 |
| Mount/Trim Color | Yellow |
| Mount/Trim Material | Polycarbonate |
| Mount Type | 2 Screw |
| NAPA Part Number | 2674A |
| Number of Diodes/Bulbs | 8 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | SS2674A-S |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P3 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 25.4 |
| Total Depth | 1 |
| Temp. Description | LED CLEARANCE MARKER PC RATED |
| Total Height_MMT | 50.04 |
| Total Height | 1.97 |
| Total Length | .07 |
| Total Width_MMT | 99.57 |
| Total Width | 3.92 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111171430 |
| VMRS | 034-004-021 |
| Voltage (VLT) | 12 |
| Weight | .17 |
Currently no product available
