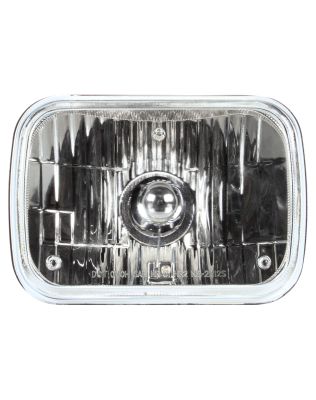

5"x7" Rectangular Halogen 1 Bulb Headlight, Glass Lens, Die-Cast Aluminum, 12V, Display

27009-1

Exceeds DOT minimum requirements by an average of 300% and 225% high beam|Review for appropriate bucket fit for installing|Retrofits ANSI #6052, 6053, H6054, and HP6054
  • No Plug
  • LC_H4 Connector
  • Halogen
  • Display
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 5"x7" Rectangular Halogen 1 Bulb Headlight, Glass Lens, Die-Cast Aluminum, 12V, Display
Brand TL
Category Headlight
Warranty 1-Year
Aiming Type Manual
Beam Pattern High|Low
Common Root 27009
Country of Origin TW
Current Major 4.69
Current Minor 4.3
Features & Benefits Exceeds DOT minimum requirements by an average of 300% and 225% high beam|Review for appropriate bucket fit for installing|Retrofits ANSI #6052, 6053, H6054, and HP6054
Feature Highlights No Plug|LC_H4 Connector|Halogen|Display|12 V
Heated Lens (Yes/No) No
Housing Material Die-Cast Aluminum
Itm Id 2873788
KIT (Yes/No) No
Lens Shape Rectangular
Lighting Technology Halogen
Lamp Connection H4 Connector
Lens Color Clear
Lens Height_INH 5
Lens Material Glass
Lens Width_INH 7
NAPA Part Number 27009
Number of Diodes/Bulbs 1
Packaging Type Standard
Part Number 27009-1
Plug Side One No Plug
Plug Side Two No Plug
Sealed/Bulb Replaceable Bulb Replaceable
Std Carton Qty 1
Taxonomy Lights.Headlights

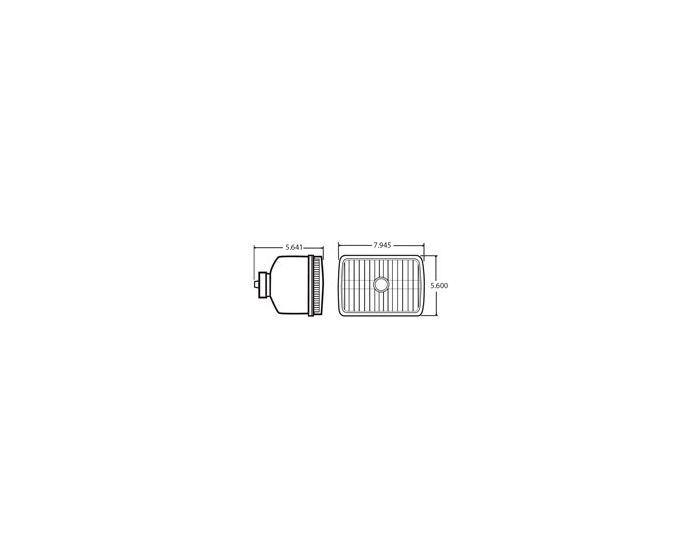

Total Depth_MMT 143.28
Total Depth 5.64
Temp. Description 5"X7" HEADLAMP MULTI SURFACE R
Total Height_MMT 142.24
Total Height 5.6
Total Width_MMT 201.8
Total Width 7.95
UNSPSC/Tariff 25172900
UPC 0735111139362
VMRS 034-001-000
Voltage (VLT) 12
Weight 2.12
