4"x6" Rectangular Halogen 1 Bulb Headlight, Glass Lens, Die-Cast Aluminum, 12V
27010

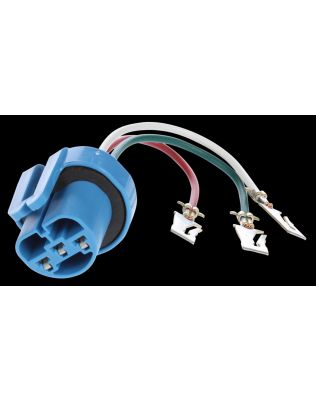

Exceeds DOT minimum requirements by an average of 300% low beam and 225% high beam|Review for appropriate bucket fit for installing|Retrofits ANSI #H4656|Adapter #95846 may be needed to retrofit, included with kit|Not recommended for certain buckets on Freightliner, Kenworth or Western Star Trucks
- No Plug
- H5 Connector
- Halogen
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 4"x6" Rectangular Halogen 1 Bulb Headlight, Glass Lens, Die-Cast Aluminum, 12V |
|---|---|
| Brand | TL |
| Category | Headlight |
| Warranty | 1-Year |
| Aiming Type | Manual |
| Beam Pattern | High|Low |
| Country of Origin | TW |
| Current Major | 5.08 |
| Current Minor | 4.3 |
| Features & Benefits | Exceeds DOT minimum requirements by an average of 300% low beam and 225% high beam|Review for appropriate bucket fit for installing|Retrofits ANSI #H4656|Adapter #95846 may be needed to retrofit, included with kit|Not recommended for certain buckets on Freightliner, Kenworth or Western Star Trucks |
| Feature Highlights | No Plug|H5 Connector|Halogen|12 V |
| Heated Lens (Yes/No) | No |
| Housing Material | Die-Cast Aluminum |
| Itm Id | 2858537 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | Halogen |
| Lamp Connection | H5 Connector |
| Lens Color | Clear |
| Lens Height_INH | 4 |
| Lens Material | Glass |
| Lens Width_INH | 6 |
| NAPA Part Number | 27010 |
| Number of Diodes/Bulbs | 1 |
| Packaging Type | Standard |
| Part Number | 27010-4 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Headlights |
| Total Depth_MMT | 124.49 |
| Total Depth | 4.9 |
| Temp. Description | 4"X6" HEADLAMP |
| Total Height_MMT | 106.48 |
| Total Height | 4.19 |
| Total Width_MMT | 162.28 |
| Total Width | 6.39 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111139355 |
| VMRS | 034-001-000 |
| Voltage (VLT) | 12 |
| Weight | 3 |
