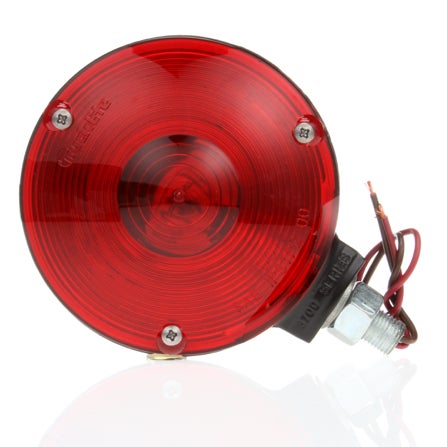

Signal-Stat, Incandescent, Red Round, 1 Bulb, Single Face, 2 Wire, Pedestal Light, 1 Stud, Black, Stripped End
2702
For vehicle application with vehicle width over 80" wide|Two wire, stop, tail, turn lamp|LED Upgrade options available #2751 and 2751A
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, Incandescent, Red Round, 1 Bulb, Single Face, 2 Wire, Pedestal Light, 1 Stud, Black, Stripped End |
|---|---|
| Brand | Signal-Stat |
| Category | Pedestal Light |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Common Size | 4" |
| Country of Origin | ZZ |
| Current Minor | 0.59 |
| Features & Benefits | For vehicle application with vehicle width over 80" wide|Two wire, stop, tail, turn lamp|LED Upgrade options available #2751 and 2751A |
| Housing Color | Black |
| Housing Material | Zinc |
| Itm Id | 1962893 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | Hardwired |
| Lens Color | Red |
| Lens Height_INH | 4.13 |
| Lens Material | Acrylic |
| Lens Width_INH | 4.13 |
| Mounting Orientation | Universal |
| Mount Type | 1 Stud Mount |
| NAPA Part Number | 2702 |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | SS2702-S |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Position | Universal |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Side Marker (Yes/No) | No |
| Standards Met | I|S|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Pedestal Lights |
| Total Depth_MMT | 50.8 |
| Total Depth | 2 |
| Temp. Description | Single Face Die Cast Pedestal |
| Total Height_MMT | 104.78 |
| Total Height | 4.13 |
| Total Length | 2.1 |
| Total Width_MMT | 117.47 |
| Total Width | 4.63 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.24956E+11 |
| VMRS | 034-002-001 |
| Voltage (VLT) | 12 |
| Weight | 0.93 |
Currently no product available
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
