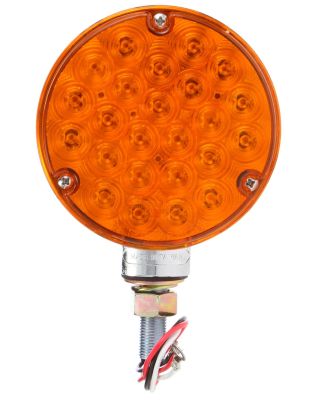

Signal-Stat, LED, Yellow Round, 24 Diode, Single Face, 3 Wire, Pedestal Light, 1 Stud, Chrome, Stripped End/Ring Terminal, Bulk
2751A-3
Chrome plated housing|Ideal for show trucks, highway mowing, municipal and farm equipment
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Yellow Round, 24 Diode, Single Face, 3 Wire, Pedestal Light, 1 Stud, Chrome, Stripped End/Ring Terminal, Bulk |
|---|---|
| Brand | Signal-Stat |
| Category | Pedestal Light |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Common Root | 2751A |
| Common Size | 4.5" |
| Country of Origin | TW |
| Current Minor | 0.03 |
| Features & Benefits | Chrome plated housing|Ideal for show trucks, highway mowing, municipal and farm equipment |
| Housing Color | Chrome |
| Housing Material | Zinc |
| Itm Id | 2851941 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Yellow |
| Lens Height_INH | 4.5 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.5 |
| Mounting Orientation | Universal |
| Mount Type | 1 Stud Mount |
| NAPA Part Number | 2751A-3 |
| Number of Diodes/Bulbs | 24 |
| Number of Wires | 3 |
| Packaging Type | Bulk |
| Part Number | SS2751A-3 |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End|Ring Terminal |
| Position | Universal |
| Sealed/Bulb Replaceable | Sealed |
| Side Marker (Yes/No) | No |
| Standards Met | I6 |
| Std Carton Qty | 50 |
| Taxonomy | Lights.Pedestal Lights |
| Total Depth_MMT | 43.18 |
| Total Depth | 1.7 |
| Temp. Description | Signal-Stat LED SF PED Lamp A |
| Total Height_MMT | 114.3 |
| Total Height | 4.5 |
| Total Length | 0.36 |
| Total Width_MMT | 114.3 |
| Total Width | 4.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 735111158189 |
| VMRS | 034-003-141 |
| Voltage (VLT) | 12 |
| Weight | 60 |
