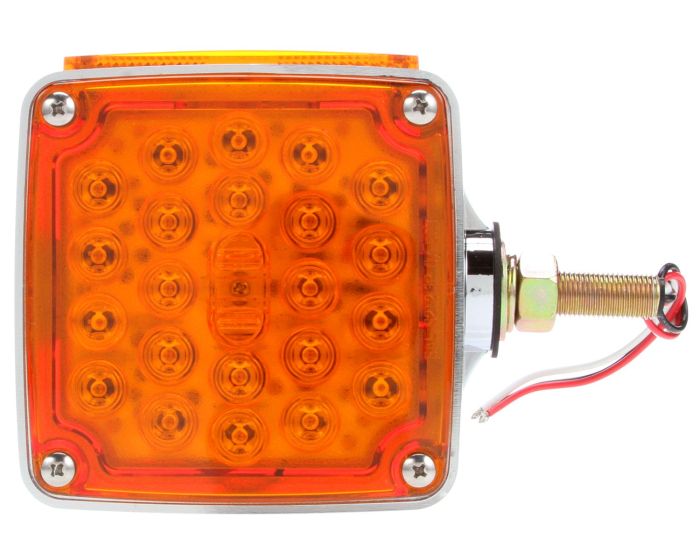

Signal-Stat, LED, Red/Yellow Square, 24 Diode, LH, Dual Face, Vertical Mount, Side Marker, 3 Wire, Pedestal Light, 1 Stud, Chrome, Stripped End/Ring Terminal

2753

Ideal for show trucks, highway, mowing, municipal and farm equipment|Unique LED array displays full pattern output|Side marker reflex reflector|LEDs have no filament, therefore are extremely resistant to shock and vibration|LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Chrome plated housing|Meets SAE J974 for agricultural warning devices|Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture
Need To Order By Phone?

(800) - 562 - 5012

Product Name Signal-Stat, LED, Red/Yellow Square, 24 Diode, LH, Dual Face, Vertical Mount, Side Marker, 3 Wire, Pedestal Light, 1 Stud, Chrome, Stripped End/Ring Terminal
New No
Best Sellers No
Show Size Chart No
Brand Signal-Stat
Category Pedestal Light
Series Signal-Stat
Warranty 2-Year
Common Size 4.5"x4.5"
Country of Origin TW
Current Minor 0.04
Features & Benefits Ideal for show trucks, highway, mowing, municipal and farm equipment|Unique LED array displays full pattern output|Side marker reflex reflector|LEDs have no filament, therefore are extremely resistant to shock and vibration|LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Chrome plated housing|Meets SAE J974 for agricultural warning devices|Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture
Housing Color Chrome
Housing Material Zinc
Itm Id 3067471
KIT (Yes/No) No
Lens Shape Square
Lighting Technology LED
Lamp Connection Hardwired
Lamp Connection (Simplified) Hardwired
Lens Color Red|Yellow
Lens Height_INH 4.54
Lens Material Polycarbonate
Lens Width_INH 4.54
Mounting Orientation Vertical
Mount Type 1 Stud Mount
NAPA Part Number 2753
Number of Diodes/Bulbs 24
Number of Wires 3
Packaging Type Standard
Part Number SS2753-S
Plug Side One Hardwired
Plug Side Two Stripped End|Ring Terminal
Position Left Hand Side
Sealed/Bulb Replaceable Sealed
Side Marker (Yes/No) Yes
Standards Met A|I|P|S|T|P2
Std Carton Qty 1
Taxonomy Lights.Pedestal Lights
Total Depth_MMT 60.96
Total Depth 2.4
Temp. Description Signal- Stat LED Square PED, LH
Total Height_MMT 124.97
Total Height 4.92
Total Length 0.38
Total Width_MMT 120.4
Total Width 4.74
UNSPSC/Tariff 25172900
UPC 0735111169420
VMRS 034-003-141
Voltage (VLT) 12
Weight 1.39
