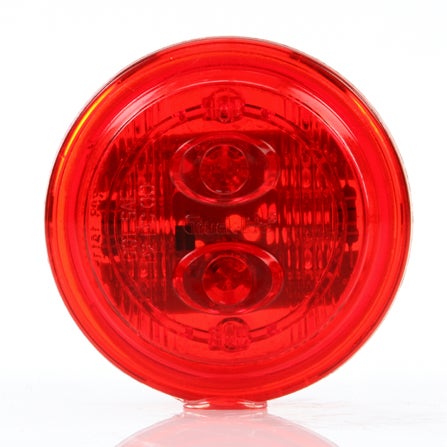

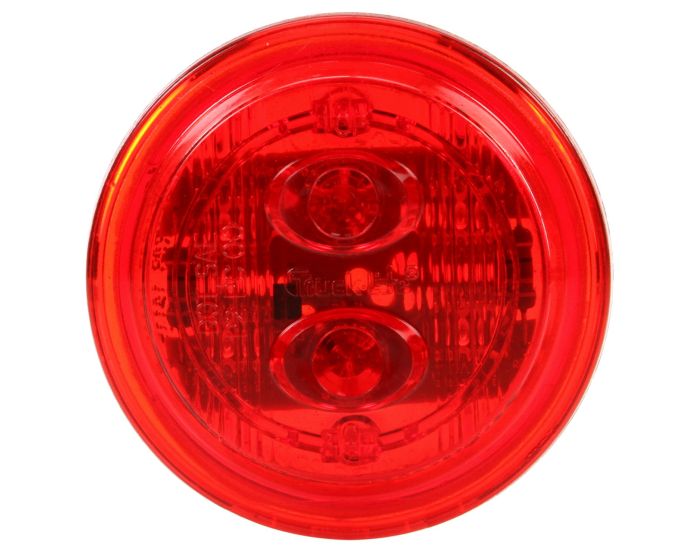

30 Series, Low Profile, LED, Red Round, 6 Diode, Marker Clearance Light, PC, Black PVC Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit
30086R
Highest quality LED Lighting products on the market from a brand you can trust|Most advanced and cost effective 2" clearance and marker lamp|LEDs have no filament, therefore are not susceptible to shock and vibration|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|SAE PC-rated for combination clearance/marker applications
- PL-10
- Fit 'N Forget M/C
- Kit
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 30 Series, Low Profile, LED, Red Round, 6 Diode, Marker Clearance Light, PC, Black PVC Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 30 Series |
| Warranty | Lifetime |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Highest quality LED Lighting products on the market from a brand you can trust|Most advanced and cost effective 2" clearance and marker lamp|LEDs have no filament, therefore are not susceptible to shock and vibration|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|SAE PC-rated for combination clearance/marker applications |
| Feature Highlights | PL-10|Fit 'N Forget M/C|Kit|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2105324 |
| KIT (Yes/No) | Yes |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Fit 'N Forget M/C |
| Lens Color | Red |
| Lens Height_INH | 2.25 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2.25 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Kit |
| NAPA Part Number | 30086R |
| Number of Diodes/Bulbs | 6 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 30086R4 |
| Plug Side One (Simplified) | Fit 'N Forget M/C |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | Female PL-10 |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 34.29 |
| Total Depth | 1.35 |
| Temp. Description | LED Mdl 30 Low Profile Combo L |
| Total Height_MMT | 57.15 |
| Total Height | 2.25 |
| Total Length | .12 |
| Total Width_MMT | 57.15 |
| Total Width | 2.25 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111065487 |
| VMRS | 034-004-253 |
| Voltage (VLT) | 12 |
| Weight | .4 |
