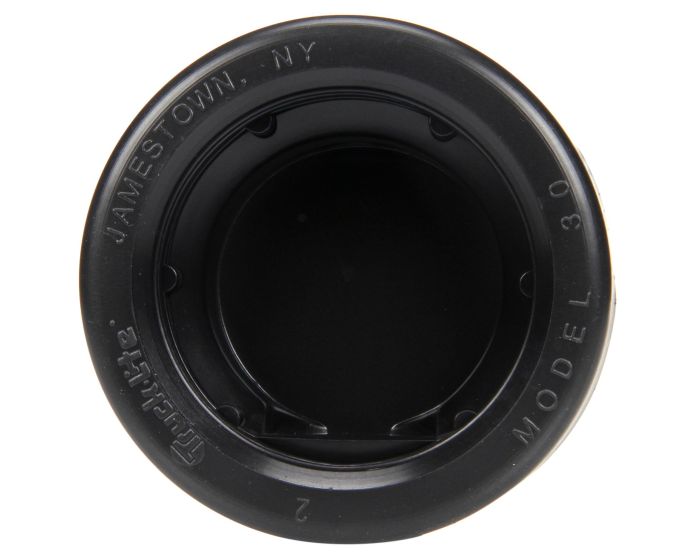

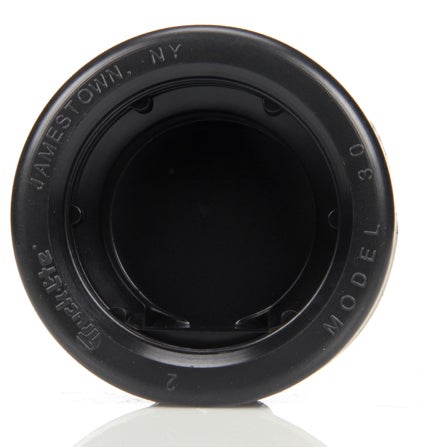

Closed Back, Black PVC, Grommet for 30 Series and 2 in. Lights, Round, PL-10, Stripped End/Ring Terminal, Kit
30402
Flush mounts 2" diameter lamps|Wide groove for panel thickness up to 250"|Suitable for PC requirements when using LED or incandescent PC-rated/combination lamps|Closed-back versions recommended for open installation where splash plate is not used|Replaces Signal-Stat 9139
- PL-10
- Kit
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Closed Back, Black PVC, Grommet for 30 Series and 2 in. Lights, Round, PL-10, Stripped End/Ring Terminal, Kit |
|---|---|
| Brand | TL |
| Category | Grommet |
| Series | 30 Series |
| Warranty | 1-Year |
| Country of Origin | MX |
| Compatible Light Shape | Round |
| Compatible Products | 2 in Lamps |
| Features & Benefits | Flush mounts 2" diameter lamps|Wide groove for panel thickness up to 250"|Suitable for PC requirements when using LED or incandescent PC-rated/combination lamps|Closed-back versions recommended for open installation where splash plate is not used|Replaces Signal-Stat 9139 |
| Feature Highlights | PL-10|Kit |
| Itm Id | 2109878 |
| KIT (Yes/No) | Yes |
| Lamp Connection | PL-10 |
| Mounting Connector Diameter_INH | 2.31 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| NAPA Part Number | 30402 |
| Number of Wires | 2 |
| Open/Close | Closed |
| Packaging Type | Standard |
| Part Number | 30402-4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two (Simplified) | Stripped End |
| Plug Side Two | Stripped End|Ring Terminal |
| Std Carton Qty | 1 |
| Taxonomy | Light Mounting.Grommet Mounts |
| Total Depth_MMT | 20.07 |
| Total Depth | .79 |
| Temp. Description | Mdl 30 Closed Back Grommet Kit |
| Total Height_MMT | 71.37 |
| Total Height | 2.81 |
| Total Width_MMT | 71.37 |
| Total Width | 2.81 |
| UNSPSC/Tariff | 31162401 |
| UPC | 0735111011798 |
| VMRS | 034-004-058 |
| Weight | .15 |
