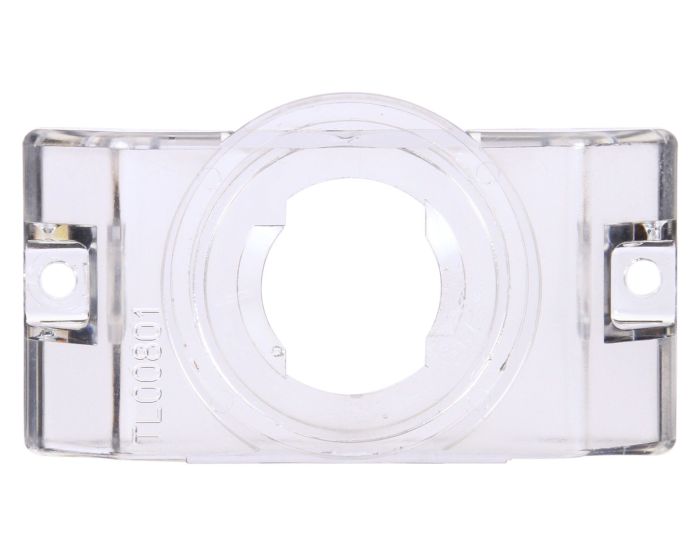

30 Series, Bracket Mount, 30 Series Lights, Used In Round Shape Lights, Clear Polycarbonate, 2 Screw Bracket Mount, PL-10, Stripped End/Ring Terminal, Kit
30403
High-impact plastic mount|Quick cam-on, cam-off lamp installation|Suitable for PC requirements on a 45-degree angle using LED or incandescent PC-rated/combination lamps|Not recommended for use with Signal-Stat LED lamps
- PL-10
- Kit
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 30 Series, Bracket Mount, 30 Series Lights, Used In Round Shape Lights, Clear Polycarbonate, 2 Screw Bracket Mount, PL-10, Stripped End/Ring Terminal, Kit |
|---|---|
| SKU | 30403 |
| Brand | TL |
| Category | Bracket Mount |
| Series | 30 Series |
| Warranty | 1-Year |
| Country of Origin | ZZ |
| Compatible Light Shape | Round |
| Compatible Products | 30 Series Lamps |
| Features & Benefits | High-impact plastic mount|Quick cam-on, cam-off lamp installation|Suitable for PC requirements on a 45-degree angle using LED or incandescent PC-rated/combination lamps|Not recommended for use with Signal-Stat LED lamps |
| Feature Highlights | PL-10|Kit |
| Itm Id | 2109915 |
| KIT (Yes/No) | Yes |
| Lamp Connection | PL-10 |
| Mounting Connector Diameter_INH | .218 |
| Mount/Trim Color | Clear |
| Mount/Trim Material | Polycarbonate |
| Mount Type | 2 Screw Bracket Mount |
| NAPA Part Number | 30403 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 30403-4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two (Simplified) | Stripped End |
| Plug Side Two | Stripped End|Ring Terminal |
| Std Carton Qty | 1 |
| Taxonomy | Light Mounting.Light Mounting Brackets & Flanges |
| Total Depth_MMT | 25.4 |
| Total Depth | 1 |
| Temp. Description | Mdl 30 Cam-On Mount Kit |
| Total Height_MMT | 54.61 |
| Total Height | 2.15 |
| Total Width_MMT | 99.06 |
| Total Width | 3.9 |
| UNSPSC/Tariff | 32130000 |
| UPC | 0735111043942 |
| VMRS | 034-004-036 |
| Weight | .15 |
