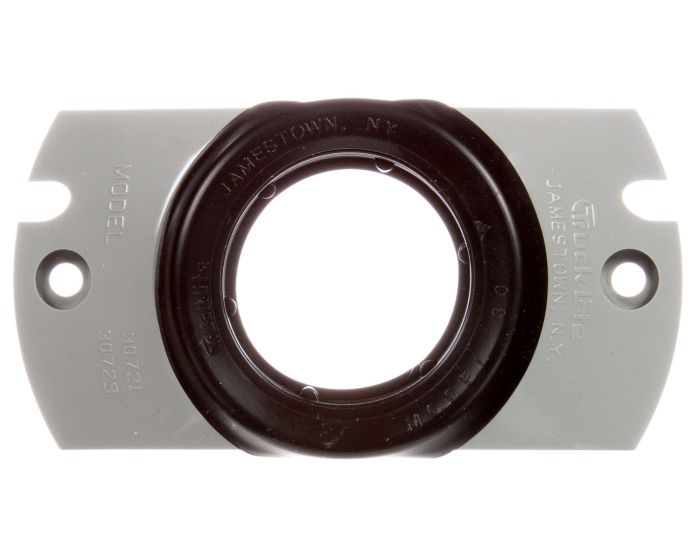

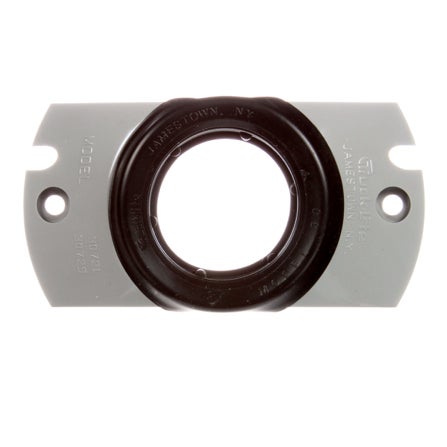

30 Series, Black Grommet, Deflector Mount, 30 Series Lights, Used In Round Shape Lights, Gray Polycarbonate, 2 Screw Bracket Mount, PL-10, Stripped End/Ring Terminal, Kit
30404
High-impact plastic mount|Design allows surface mounting of 2" diameter lamps|Meets PC requirements on a 45-degree angle using LED or incandescent PC-rated/combination lamp|Replaces Signal-Stat 9395
- PL-10
- Kit
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 30 Series, Black Grommet, Deflector Mount, 30 Series Lights, Used In Round Shape Lights, Gray Polycarbonate, 2 Screw Bracket Mount, PL-10, Stripped End/Ring Terminal, Kit |
|---|---|
| Brand | TL |
| Category | Deflector Mount |
| Series | 30 Series |
| Warranty | 1-Year |
| Country of Origin | ZZ |
| Compatible Light Shape | Round |
| Compatible Products | 30 Series Lamps |
| Features & Benefits | High-impact plastic mount|Design allows surface mounting of 2" diameter lamps|Meets PC requirements on a 45-degree angle using LED or incandescent PC-rated/combination lamp|Replaces Signal-Stat 9395 |
| Feature Highlights | PL-10|Kit |
| Itm Id | 2109966 |
| KIT (Yes/No) | Yes |
| Lamp Connection | PL-10 |
| Mounting Connector Diameter_INH | .25 |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Mount Type | 2 Screw Bracket Mount |
| NAPA Part Number | 30404 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 30404-4 |
| Plug Side One (Simplified) | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two (Simplified) | Stripped End |
| Plug Side Two | Stripped End|Ring Terminal |
| Std Carton Qty | 1 |
| Taxonomy | Light Mounting.Light Mounting Brackets & Flanges |
| Total Depth_MMT | 22.23 |
| Total Depth | .88 |
| Temp. Description | Mdl 30 Deflector Mount Kit |
| Total Height_MMT | 69.85 |
| Total Height | 2.75 |
| Total Width_MMT | 136.53 |
| Total Width | 5.38 |
| UNSPSC/Tariff | 32130000 |
| UPC | 0735111043942 |
| VMRS | 034-004-036 |
| Weight | .22 |
