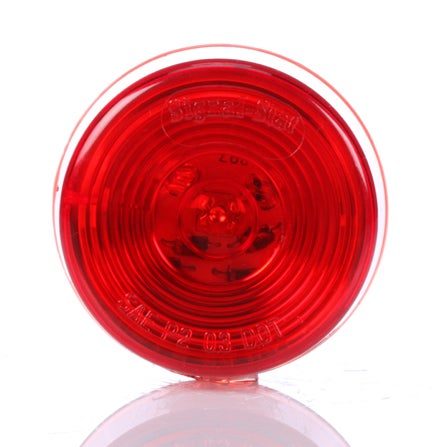

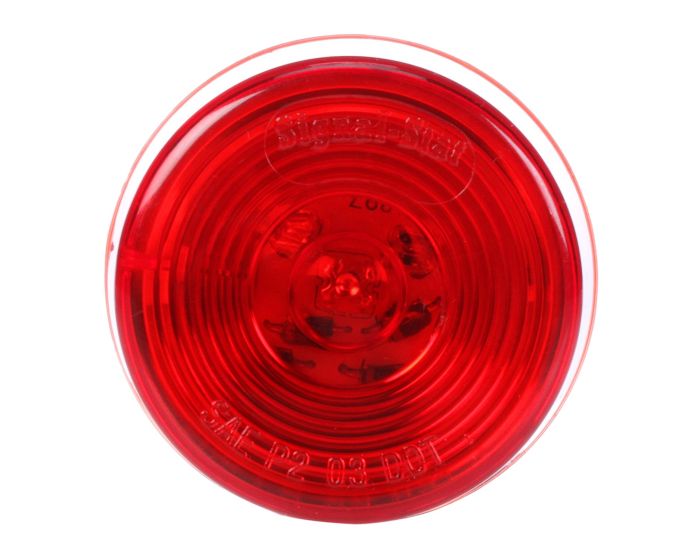

Signal-Stat, 2" Round, LED, Red Round, 1 Diodes, Marker Clearance Light, P2, PL-10, 12V
3058
Engineered to feature one bright and economical light emitting diode (LED)|Uses standard PL-10 connector|When properly mounted, exceeds FMVSS-P2 DOT requirements for marker/clearance performance|Designed with impact-resistant polycarbonate|Sealed lens and housing locks moisture out|Snap fit grommet requires no screws for installation|LEDs do not have a filament, therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Popular on owner/operator and show trucks|Lamps come with Truck-Lite 2-Year Limited Warranty
- No Plug
- PL-10
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, 2" Round, LED, Red Round, 1 Diodes, Marker Clearance Light, P2, PL-10, 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Marker Clearance Light |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Common Root | 3058 |
| Country of Origin | CA |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Engineered to feature one bright and economical light emitting diode (LED)|Uses standard PL-10 connector|When properly mounted, exceeds FMVSS-P2 DOT requirements for marker/clearance performance|Designed with impact-resistant polycarbonate|Sealed lens and housing locks moisture out|Snap fit grommet requires no screws for installation|LEDs do not have a filament, therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Popular on owner/operator and show trucks|Lamps come with Truck-Lite 2-Year Limited Warranty |
| Feature Highlights | No Plug|PL-10|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 3927936 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | PL-10 |
| Lens Color | Red |
| Lens Height_INH | 2 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 2 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 3058 |
| Number of Diodes/Bulbs | 1 |
| Packaging Type | Standard |
| Part Number | SS3058-S |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 23.88 |
| Total Depth | .94 |
| Total Height_MMT | 51.31 |
| Total Height | 2.02 |
| Total Length | .05 |
| Total Width_MMT | 51.31 |
| Total Width | 2.02 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111190714 |
| VMRS | 034-004-021 |
| Voltage (VLT) | 12 |
| Weight | .1 |
