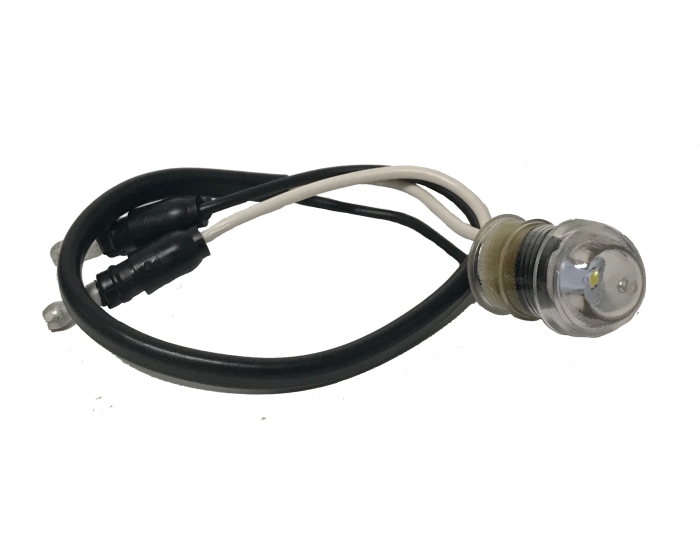

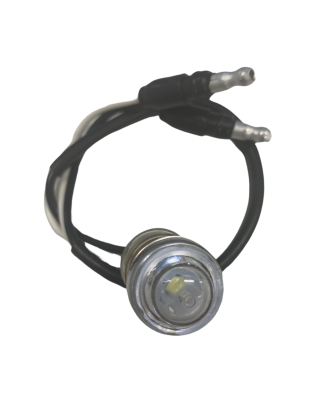

Product Name | 33 Series, LED, .75", Round, 1 Diode, Clear, Polycarbonate Lens, Grommet Mount, Hardwired, .180 Bullet, 12V, L, License Light, Kit |
---|---|
Brand | TL |
Category | License Light |
Series | 33 Series |
Warranty | 5-Year |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Size | .75" |
Country of Origin | ZZ |
Current_AMP | 0.15 |
Diamond Shell (Yes/No) | No |
Features & Benefits | Hardwired lamp design is easily retrofitted, with only a 1-3/16'' mounting hole required for grommet installation|US Patent 5,943,798|Product designed to fit in 33705 grommet|Top and side plate mounting options|When mounted into a module, all wires are hidden inside module, protecting against damage from corrosion|Does not require a bracket, so it can be mounted directly into the vehicle|Stealth, low-profile design is resistant to damage, and hides lamp away from view to help prevent theft|LEDs draw less current, allowing more power for other vehicle requirements|Reduces lighting costs due to physical damage and heat entrapment|Electronics are completely sealed in epoxy to resist corrosion and moisture |
Housing Material | Polycarbonate |
Itm Id | 3228086 |
KIT (Yes/No) | Yes |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lens Color | Clear |
Lens Height_INH | 0.72 |
Lens Material | Polycarbonate |
Lens Width_INH | 1.06 |
Mount/Trim Color | Black |
Mount/Trim Material | Rubber |
Mount Type | Grommet Mount |
NAPA Part Number | 33010C |
Number of Diodes/Bulbs | 1 |
Number of Wires | 2 |
Packaging Type | Standard |
Part Number | 33010C4 |
Plug Side One | Hardwired |
Plug Side Two (Simplified) | .180 Bullet |
Plug Side Two | .180 Bullet |
Sealed/Bulb Replaceable | Sealed |
Standards Met | L |
Std Carton Qty | 5 |
Taxonomy | Lights.License Lights |
Total Depth_MMT | 306.58 |
Total Depth | 12.07 |
Temp. Description | LED Mdl 33 License Lamp & Grom |
Total Height_MMT | 18.29 |
Total Height | 0.72 |
Total Width_MMT | 18.29 |
Total Width | 0.72 |
UNSPSC/Tariff | 25172900 |
UPC | 7.35111E+11 |
VMRS | 034-002-042 |
Voltage (VLT) | 12 |
Weight | 0.08 |
