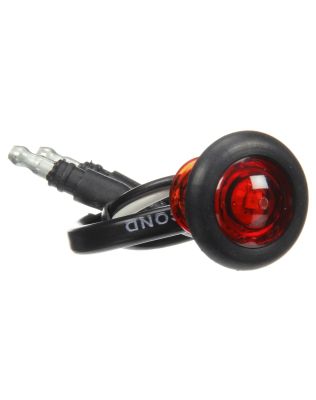

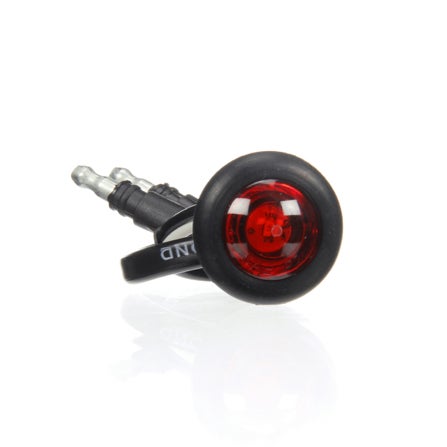

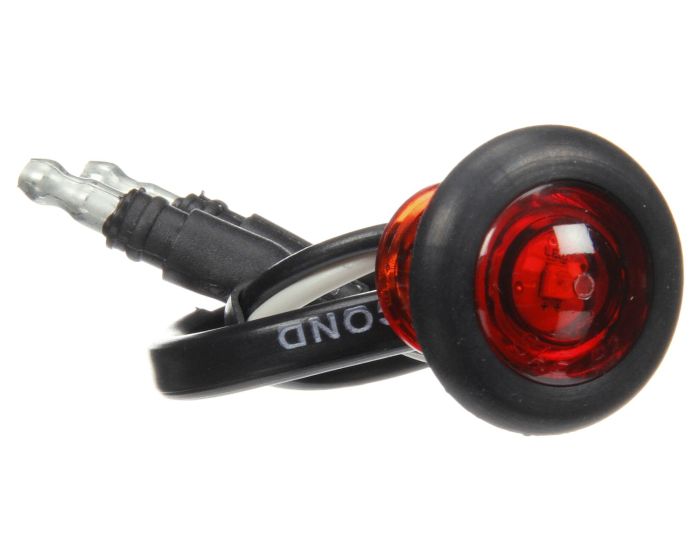

33 Series LED 0.75" Round 1 Diode Red Polycarbonate Lens, Black Rubber Grommet Mount Hardwired 12V, P2 Single Marker Clearance Light Kit
33050R
US patent 7,658,524|World's smallest LED marker lamp for the transportation industry|Exceeds legal requirements|Hardwired lamp design is easily retrofitted|LEDs draw less current, allowing more power for other vehicle requirements|Electronics completely sealed in epoxy to resist corrosion and moisture|Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility|Requires 3/4" mounting hole|Reduces lighting costs due to physical damage and heat entrapment|Material thickness for flange is 040'' - 250''|Material thickness for grommet is 125'' - 250''
- Hardwired
- Kit
- .180 Bullet
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 33 Series LED 0.75" Round 1 Diode Red Polycarbonate Lens, Black Rubber Grommet Mount Hardwired 12V, P2 Single Marker Clearance Light Kit |
|---|---|
| SKU | 33050R |
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 33 Series |
| Warranty | Lifetime |
| Common Root | 33050R |
| Common Size | .75" |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | US patent 7,658,524|World's smallest LED marker lamp for the transportation industry|Exceeds legal requirements|Hardwired lamp design is easily retrofitted|LEDs draw less current, allowing more power for other vehicle requirements|Electronics completely sealed in epoxy to resist corrosion and moisture|Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility|Requires 3/4" mounting hole|Reduces lighting costs due to physical damage and heat entrapment|Material thickness for flange is 040'' - 250''|Material thickness for grommet is 125'' - 250'' |
| Feature Highlights | Hardwired|Kit|.180 Bullet|12 V |
| Function | Single |
| Housing Material | Polycarbonate |
| Itm Id | 2419391 |
| KIT (Yes/No) | Yes |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Red |
| Lens Height_INH | .72 |
| Lens Material | Polycarbonate |
| Lens Width_INH | .72 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Rubber |
| Mount Type | Grommet Mount |
| NAPA Part Number | 33050R |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 33050R4 |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2 |
| Std Carton Qty | 5 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 24.89 |
| Total Depth | .98 |
| Temp. Description | LED MDL 33 M/C GROMMET MOUNT K |
| Total Height_MMT | 27.69 |
| Total Height | 1.09 |
| Total Length | .05 |
| Total Width_MMT | 27.69 |
| Total Width | 1.09 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111134497 |
| VMRS | 034-004-253 |
| Voltage (VLT) | 12 |
| Weight | .1 |
