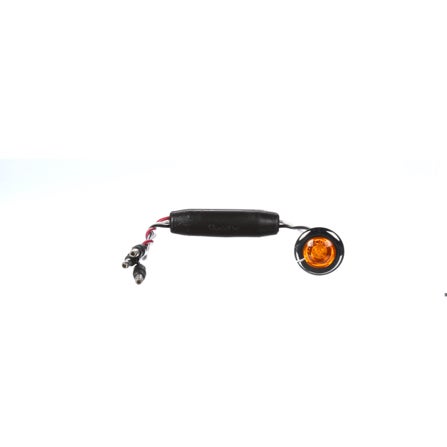

Product Name | 33 Series LED 0.75" Round 1 Diode Yellow Polycarbonate Lens, Chrome ABS Flange Mount Hardwired 12V, P2 Dual Marker Clearance Light Kit |
---|---|
Brand | TL |
Category | Marker Clearance Light |
Series | 33 Series |
Warranty | Lifetime |
Common Size | .75" |
Country of Origin | CA |
Current Minor | 0.03 |
Diamond Shell (Yes/No) | No |
Features & Benefits | World smallest LED marker lamp for the transportation industry|Provides increased visibility when braking or turning|Functions as a marker, auxiliary turn, and auxiliary stop when properly installed|Best in class auxiliary brake function is seven times brighter than marker function|Marker function exceeds P2 legal requirements|Requires a ¾” mounting hole|Hardwired lamp with 180 male bullet design can be easily retrofitted|LEDs draw less current, allowing more power for other vehicle requirements|LEDs have no filament, therefore are not susceptible to shock and vibrationandEngineered to withstand the toughest working environments|Electronics sealed in epoxy to resist corrosion and moistureandBacked by our industry-leading limited Lifetime Warranty|Complies with FMVSS-108 marker/clearance requirements |
Feature Highlights | Hardwired|Kit|.180 Bullet|12 V |
Function | Dual |
Housing Material | Polycarbonate |
Itm Id | 4051260 |
KIT (Yes/No) | Yes |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lens Color | Yellow |
Lens Height_INH | 0.74 |
Lens Material | Polycarbonate |
Lens Width_INH | 0.74 |
Mount/Trim Color | Chrome |
Mount/Trim Material | ABS |
Mount Type | Flange Mount |
Number of Diodes/Bulbs | 1 |
Number of Wires | 3 |
Packaging Type | Standard |
Part Number | 33208Y4 |
Plug Side One | Hardwired |
Plug Side Two | .180 Bullet |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Sealed |
Standards Met | P2 |
Std Carton Qty | 1 |
Taxonomy | Lights.Marker & Clearance Lights |
Total Depth_MMT | 292.1 |
Total Depth | 11.5 |
Total Height_MMT | 292.1 |
Total Height | 11.5 |
Total Length | 0.12 |
Total Width_MMT | 27.69 |
Total Width | 1.09 |
UNSPSC/Tariff | 25172900 |
UPC | 7.35111E+11 |
VMRS | 034-004-021 |
Voltage (VLT) | 12 |
Weight | 0.07 |
