Product Name | 33 Series, LED, 0.75", Round, 1 Diode, Yellow, Polycarbonate Lens, Grommet Mount, Hardwired, 12V, P2, Single, Marker Clearance Light, Bulk |
---|---|
Brand | TL |
Category | Marker Clearance Light |
Series | 33 Series |
Warranty | Lifetime |
Common Root | 33250Y |
Common Size | .75" |
Country of Origin | ZZ |
Diamond Shell (Yes/No) | No |

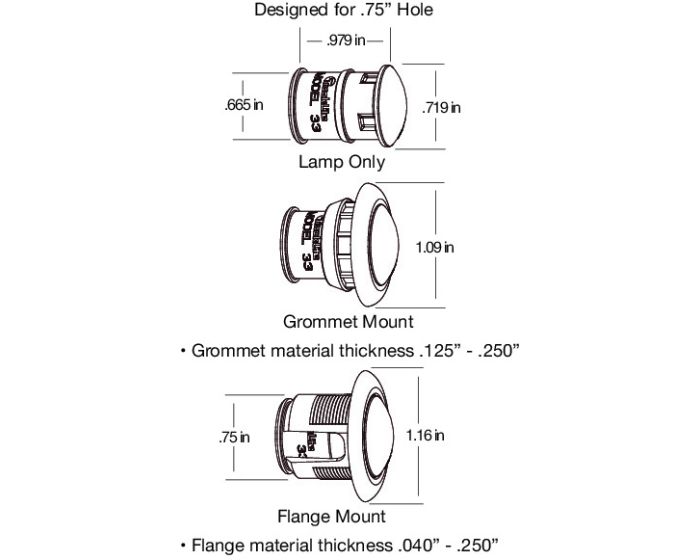

Features & Benefits | US patent 7,658,524|World's smallest LED marker lamp for the transportation industry|Exceeds legal requirements|Hardwired lamp design is easily retrofitted|LEDs draw less current, allowing more power for other vehicle requirements|Electronics completely sealed in epoxy to resist corrosion and moisture|Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility|Requires 3/4" mounting hole|Reduces lighting costs due to physical damage and heat entrapment|Material thickness for flange is 040'' - 250''|Material thickness for grommet is 125'' - 250'' |
Feature Highlights | Hardwired|Bulk|.180 Bullet|12 V |
Function | Single |
Housing Material | Polycarbonate |
Itm Id | 2996796 |
KIT (Yes/No) | No |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lens Color | Yellow |
Lens Height_INH | .72 |
Lens Material | Polycarbonate |
Lens Width_INH | .72 |
Mount Type | Grommet Mount |
NAPA Part Number | 33250Y3 |
Number of Diodes/Bulbs | 1 |
Number of Wires | 2 |
Packaging Type | Bulk |
Part Number | 33250Y3 |
Plug Side One | Hardwired |
Plug Side Two | .180 Bullet |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Sealed |
Standards Met | P2 |
Std Carton Qty | 50 |
Taxonomy | Lights.Marker & Clearance Lights |
Total Depth_MMT | 24.87 |
Total Depth | .98 |
Temp. Description | LED MDL 33 M/C LAMP |
Total Height_MMT | 18.26 |
Total Height | .72 |
Total Length | .05 |
Total Width_MMT | 18.26 |
Total Width | .72 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111165347 |
VMRS | 034-004-253 |
Voltage (VLT) | 12 |
Weight | 2.4 |
