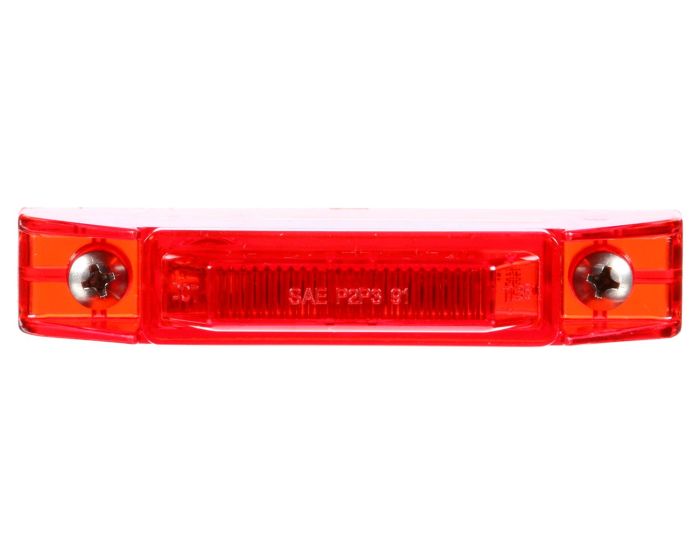

35 Series, LED, Red Rectangular, 1 Diode, Marker Clearance Light, P2, 2 Screw, Fit 'N Forget M/C, .180 Bullet Terminal/Ring Terminal, 12V, Kit, Bulk
35001R3
Slim 3/4'' wide design makes lamp perfect solution for narrow rail designs|Must be mounted horizontally|Optional gasket to improve seal between lamp and body|Not suitable for PC requirements
- Fit 'N Forget M/C
- Kit
- Bulk
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 35 Series, LED, Red Rectangular, 1 Diode, Marker Clearance Light, P2, 2 Screw, Fit 'N Forget M/C, .180 Bullet Terminal/Ring Terminal, 12V, Kit, Bulk |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 35 Series |
| Warranty | Lifetime |
| Common Root | 35001R |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Slim 3/4'' wide design makes lamp perfect solution for narrow rail designs|Must be mounted horizontally|Optional gasket to improve seal between lamp and body|Not suitable for PC requirements |
| Feature Highlights | Fit 'N Forget M/C|Kit|Bulk|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2113789 |
| KIT (Yes/No) | Yes |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | Fit 'N Forget M/C |
| Lens Color | Red |
| Lens Height_INH | .75 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4 |
| Mount/Trim Color | Red |
| Mount Type | 2 Screw |
| NAPA Part Number | 35001R3 |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Bulk |
| Part Number | 35001R3 |
| Plug Side One (Simplified) | Fit 'N Forget M/C |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | .180 Bullet|Ring Terminal |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 50 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 31.75 |
| Total Depth | 1.25 |
| Temp. Description | LED Mdl 35Omni Volt Lamp Kit, |
| Total Height_MMT | 19.05 |
| Total Height | .75 |
| Total Length | .05 |
| Total Width_MMT | 101.6 |
| Total Width | 4 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111082712 |
| VMRS | 034-004-253 |
| Voltage (VLT) | 12 |
| Weight | 4.86 |
