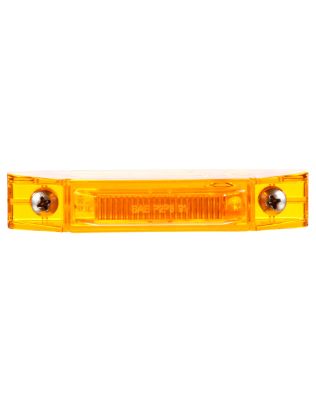

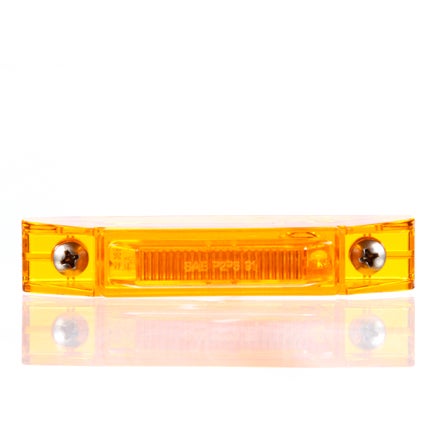

Product Name | 35 Series, LED, Yellow Rectangular, 2 Diode, Marker Clearance Light, P2, 2 Screw, Fit 'N Forget M/C, 12V |
---|---|
Brand | TL |
Category | Marker Clearance Light |
Series | 35 Series |
Warranty | Lifetime |
Common Root | 35200Y |
Country of Origin | ZZ |
Diamond Shell (Yes/No) | No |
Features & Benefits | Slim 3/4'' wide design makes lamp perfect solution for narrow rail designs|Must be mounted horizontally|Optional gasket to improve seal between lamp and body|Not suitable for PC requirements |
Feature Highlights | No Plug|Fit 'N Forget M/C|12 V |
Housing Material | Polycarbonate |
Itm Id | 2114909 |
KIT (Yes/No) | No |
Lens Shape | Rectangular |
Lighting Technology | LED |
Lamp Connection | Fit 'N Forget M/C |
Lens Color | Yellow |
Lens Height_INH | .75 |
Lens Material | Polycarbonate |
Lens Width_INH | 4 |
Mount/Trim Color | Yellow |
Mount Type | 2 Screw |
NAPA Part Number | 35200Y |
Number of Diodes/Bulbs | 2 |
Packaging Type | Standard |
Part Number | 35200Y4 |
Plug Side One | No Plug |
Plug Side Two | No Plug |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Sealed |
Standards Met | P2|PC |
Std Carton Qty | 1 |
Taxonomy | Lights.Marker & Clearance Lights |
Total Depth_MMT | 31.75 |
Total Depth | 1.25 |
Temp. Description | LED Mdl 35 Omni Volt Lamp |
Total Height_MMT | 19.05 |
Total Height | .75 |
Total Length | .05 |
Total Width_MMT | 101.6 |
Total Width | 4 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111040903 |
VMRS | 034-004-253 |
Voltage (VLT) | 12 |
Weight | .13 |
