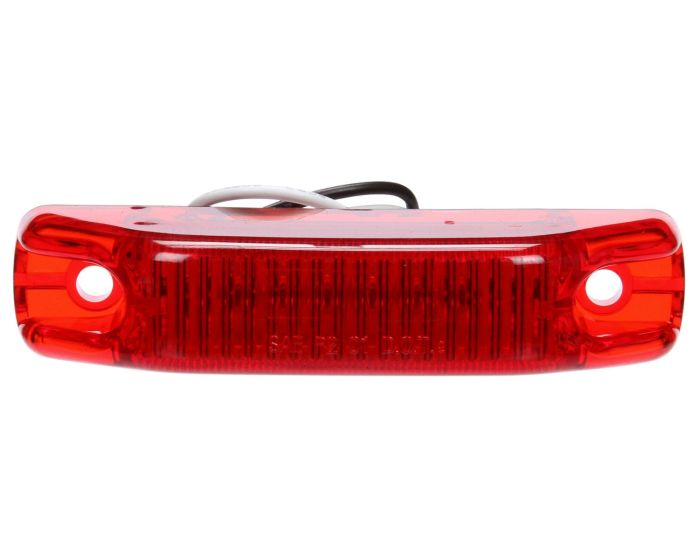

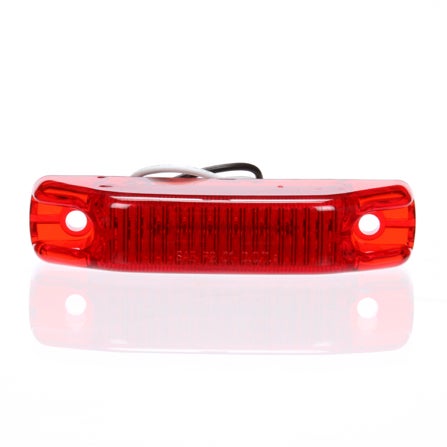

Signal-Stat, LED, Red Rectangular, 2 Diode, Marker Clearance Light, P2, 2 Screw, Hardwired, Ring Terminal/Stripped End, 12V
3550
Full pattern light output|Popular on show truck applications|Designed for areas with limited space|Not suitable for PC requirements|Hardwired design eliminates pin corrosion
- Hardwired
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Red Rectangular, 2 Diode, Marker Clearance Light, P2, 2 Screw, Hardwired, Ring Terminal/Stripped End, 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Marker Clearance Light |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Country of Origin | TW |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Full pattern light output|Popular on show truck applications|Designed for areas with limited space|Not suitable for PC requirements|Hardwired design eliminates pin corrosion |
| Feature Highlights | Hardwired|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 3067753 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Red |
| Lens Height_INH | .88 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4 |
| Mount/Trim Color | Red |
| Mount Type | 2 Screw |
| NAPA Part Number | 3550 |
| Number of Diodes/Bulbs | 2 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | SS3550-S |
| Plug Side One | Hardwired |
| Plug Side Two | Ring Terminal|Stripped End |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 29.97 |
| Total Depth | 1.18 |
| Temp. Description | LED Side Marker and Clearance |
| Total Height_MMT | 22.35 |
| Total Height | .88 |
| Total Length | .05 |
| Total Width_MMT | 101.6 |
| Total Width | 4 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111171478 |
| VMRS | 034-004-253 |
| Voltage (VLT) | 12 |
| Weight | .15 |
